Archer AX11000
AX11000 Next-Gen Tri-Band Gaming Router
Ultra-Fast Wi-Fi for Extreme Gaming – AX11000 speed machine that
delivers Wi-Fi Speeds Over 10 Gbps: 4804 Mbps (5 GHz Gaming) +
4804 Mbps (5 GHz) + 1148 Mbps (2.4 GHz)1
Game Accelerator – Detect and optimize gaming streams, to ensure
your gaming stays immersive
Game Protector – Keep your accounts and documents safe with a free
lifetime subscription of Homecare™ security system.
Game Statistics – Real-time latency, game duration and network
resource allocation in a glance with fine-tuned UI.

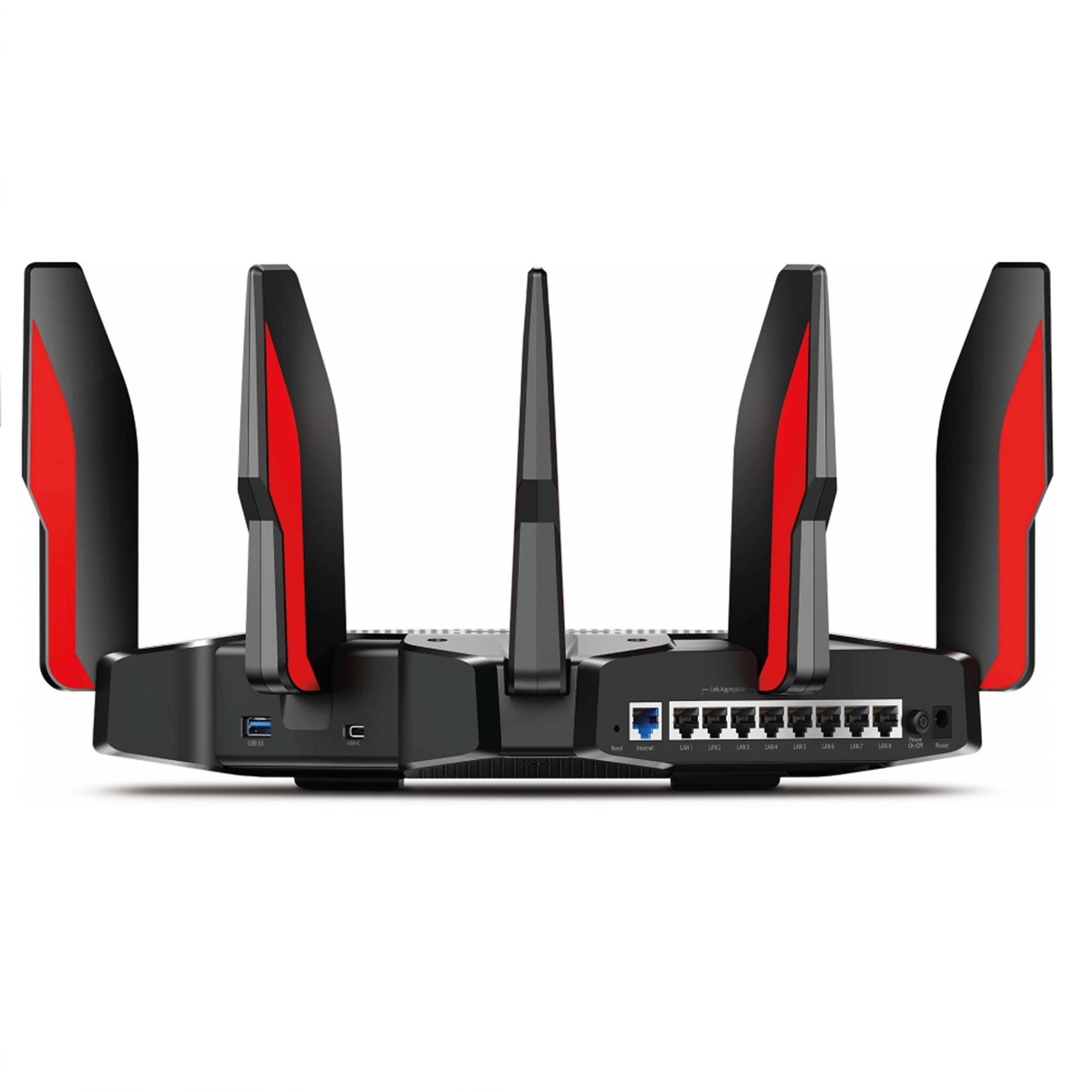

Ultra-Connectivity - 2.5 Gbps WAN port and eight Gigabit LAN ports,

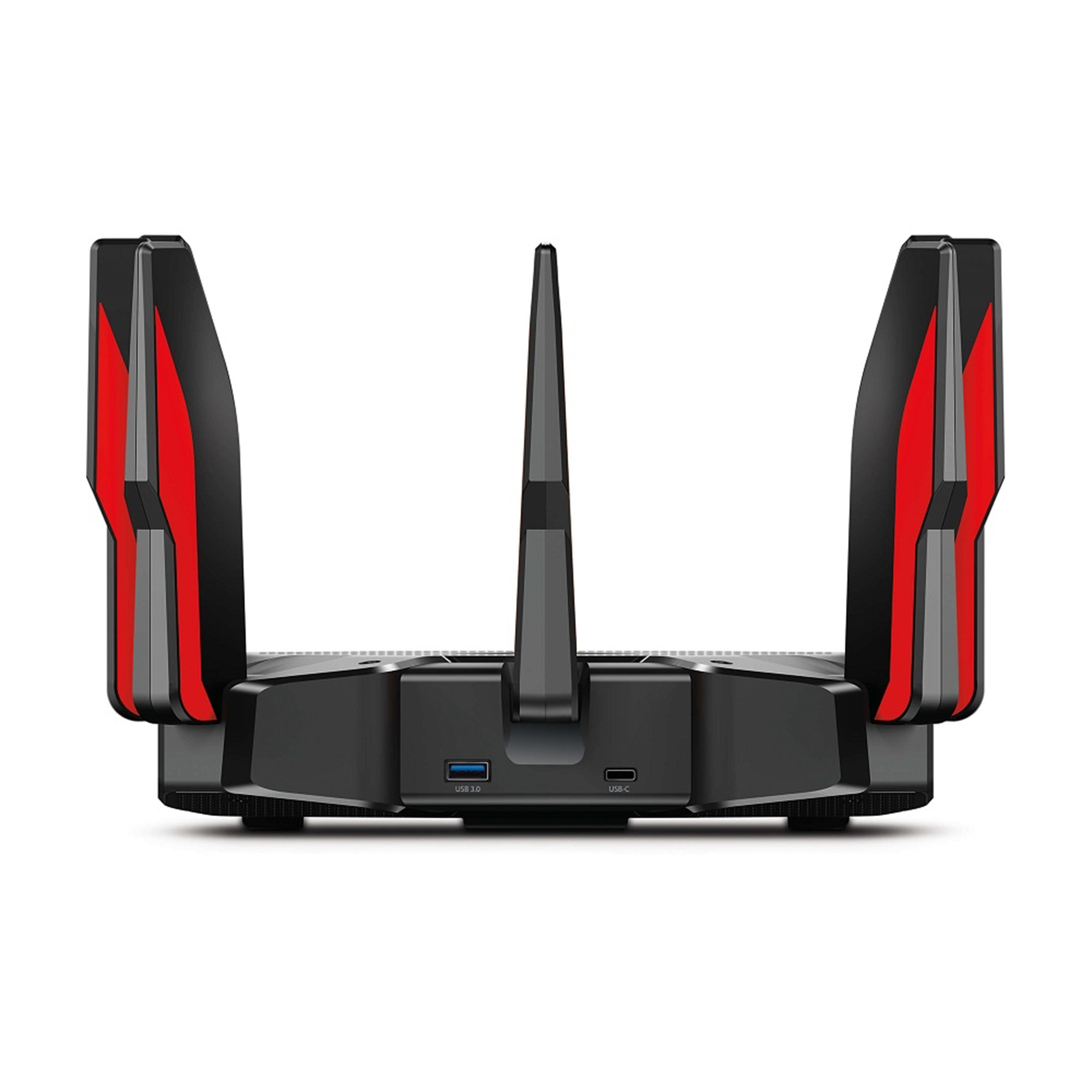

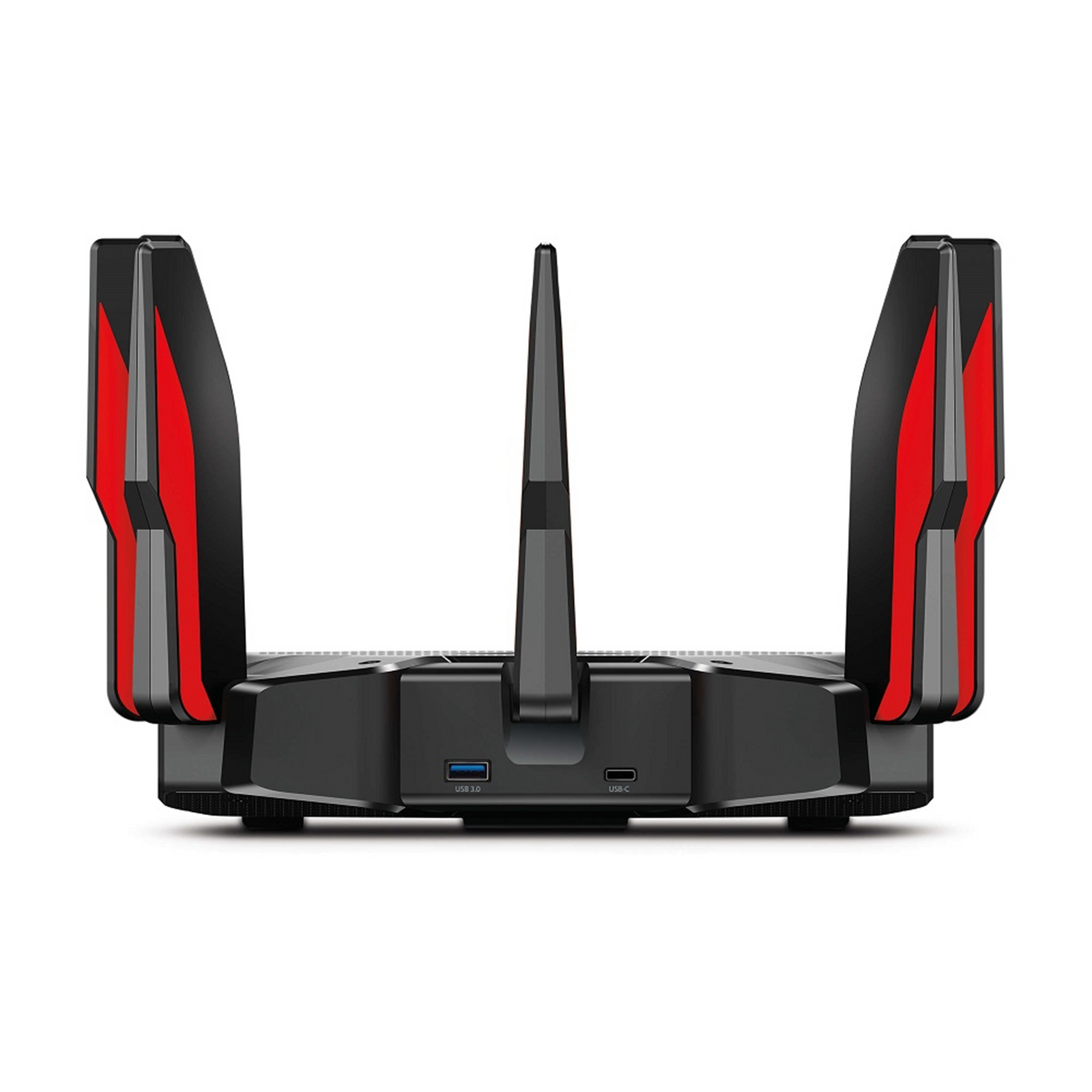

2 USB 3.0 in Type A and Type C provide extensive connectivity.
Powerful Processing – 1.8 GHz Quad-Core CPU and 3 coprocessors
ensure your network performance always at peak run.
Highly Efficient – OFDMA increases the avg. throughput and
reduces the lag.
Easy and Smart – Link to your router via Bluetooth and set
it up in minutes with the powerful Tether app.
1.Maximum wireless transmission rates are the physical rates derived from IEEE Standard 802.11 specifications. Range and coverage specifications along with the number of connected devices were defined according to test results under normal usage conditions.
Actual wireless transmission rate, wireless coverage, and the number of connected devices are not guaranteed and will vary as a result of 1) environmental factors, including building materials, physical objects and obstacles, 2) network conditions, including local interference, volume and density of traffic, product location, network complexity, and network overhead and 3) client limitations, including rated performance, location, connection quality, and client condition.
2.Use of Wi-Fi 6 (802.11ax), and features including OFDMA, MU-MIMO, and 1024-QAM require clients to also support the corresponding features.
3. Capacity refers to the overall average throughput. The amendment defines standardized modifications to both the IEEE 802.11 physical layers (PHY) and the IEEE 802.11 Medium Access Control (MAC) layer that enable at least one mode of operation capable of supporting the improvement of at least four times the average throughput per station (measured at the MAC data service access point) in a dense deployment scenario.
4.Full utilization of HE160 requires a client device that supports 160 MHz bandwidth.
5. This router may not support all the mandatory features as ratified in Draft 3.0 of IEEE 802.11AX specification.
6. 2.5 Gbps internet speed requires compatible service plans from ISPs.
7.A free lifetime subscription to TP-Link HomeCare™ is included with the purchase on select TP-Link routers at no additional cost. “Lifetime Subscription” refers solely to the life of the purchased device and cannot be transferred. TP-Link reserves the right to modify the service and feature at any time. Please visit and check: www.tp link.com/homecare
WIRELESS |
|
Standards: | Wi-Fi 6 IEEE 802.11ax/ac/n/a 5 GHz IEEE 802.11ax/n/b/g 2.4 GHz |
Wi-Fi Speeds: | AX11000 5 GHz: 4804 Mbps (802.11ax, HE160) 5 GHz: 4804 Mbps (802.11ax, HE160) 2.4 GHz: 1148 Mbps (802.11ax) |

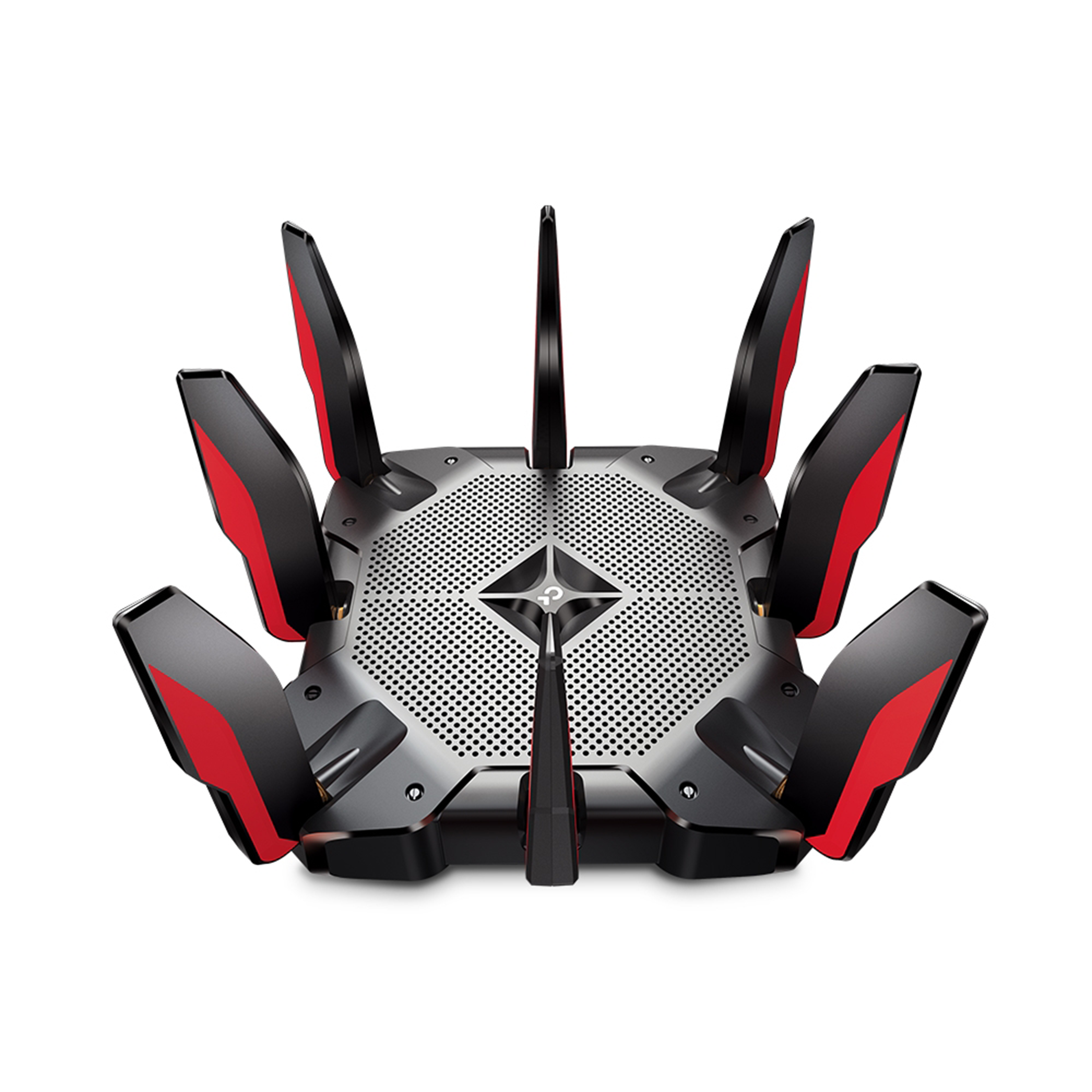

Wi-Fi Range: | 4-6 Bedroom Houses 8× Detachable High-Performance Antennas Multiple antennas form a signal-boosting array to cover more directions and large areas Beamforming Concentrates wireless signal strength towards clients to expand Wi-Fi range High-Power FEM Improves transmission power to strengthen signal coverage 4T4R Multiple streams in the same band strengthen the fault tolerance in transmission |
Wi-Fi Capacity: |
Very High Tri-Band Allocate devices to different bands for optimal performance 4×4 MU-MIMO Simultaneously communicates with multiple MU-MIMO clients OFDMA Simultaneously communicates with multiple Wi-Fi 6 clients Airtime Fairness Improves network efficiency by limiting excessive occupation DFS Access an extra band to reduce congestion 12 Streams Connect your devices to more bandwidth |
Working Modes: | Router Mode Access Point Mode |
HARDWARE | |
Processor: | 1.8 GHz 64 Bit Quad-Core CPU |
Ethernet Ports |
1× 2.5 Gbps WAN Port Static Link Aggregation (LAG) available with 2× LAN ports |
USB Support: | 1× USB-C 3.0 Port 1× USB-A 3.0 Port |
Supported Partition Formats: | NTFS, exFAT, HFS+, FAT32 |
Supported Functions: | Apple Time Machine FTP Server Media Server Samba Server |
Buttons: | Wi-Fi On/Off Button Power On/Off Button LED On/Off Button WPS Button Reset Button |
Power: | 12 V ⎓ 5 A |
SECURITY | |
WiFi Encryption: | WPA WPA2 WPA3 WPA/WPA2-Enterprise (802.1x) |
Network Security: | SPI Firewall Access Control IP & MAC Binding Application Layer Gateway HomeCare™ Antivirus Malicious Site Checker Port Intrusion Prevention Infected Device Isolation Notification and Log |
Guest Network: | 1× 5 GHz Guest Network 1× 2.4 GHz Guest Network |
VPN Server: | OpenVPN PPTP |
SOFTWARE | |
Protocols: | IPv4 IPv6 |
Game Center: |
Game Accelerator Detects and optimizes gaming streams to keep latency as low as possible Game Statistics Check real-time latency, system utilization, and game duration on a redesigned dashboard to tweak every detail Game Protector Keep your accounts and system safe with HomeCare™ antivirus protection |
Service Kits: | HomeCare™ |
OneMesh™: | OneMesh™ Supported Without replacing your existing devices or buying a whole new WiFi ecosystem, OneMesh™ helps you create a more flexible network that covers your entire home with TP-Link OneMesh™ products. |
Parental Controls: | HomeCare™ Parental Controls Custom Profiles Content Filtering App Block URL Filtering Time Limit Time Schedule (Bedtime) Log Insight |
WAN Types: | Dynamic IP Static IP PPPoE PPTP L2TP |
Quality of Service: | Game Accelerator QoS QoS by Device HomeCare™ QoS QoS by Application |
Cloud Service: | Auto Firmware Upgrade OTA Firmware Upgrade TP-Link ID DDNS |
NAT Forwarding: | Port Forwarding Port Triggering DMZ UPnP |
IPTV: | IGMP Proxy IGMP Snooping Bridge Tag VLAN |
DHCP: | Address Reservation DHCP Client List Server |
DDNS: | TP-Link NO-IP DynDNS |
Management: | Tether App Webpage |
PHYSICAL | |
Dimensions (W×D×H): | 11.3 × 11.3 × 7.2 in (288 × 288 × 184 mm) |
Package Contents: | Wi-Fi Router Archer AX11000 Power Adapter RJ45 Ethernet Cable Quick Installation Guide |
OTHER | |
System Requirements: | Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser Cable or DSL Modem (if needed) Subscription with an internet service provider (for internet access) |
Certifications: | FCC, RoHS |
Environment: | Operating Temperature: 0℃~40℃ (32℉ ~104℉) Storage Temperature: -40℃~70℃ (-40℉ ~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
TEST DATA | |
Wi-Fi Transmission Power: | FCC: <30dBm(2.4GHz & 5.15GHz~5.25GHz & 5.725GHz~5.825GHz) <24dBm(5.25GHz-5.35GHz & 5.47GHz-5.725 GHz) |
Wi-Fi Reception Sensitivity: | 5 GHz_1: 11a [6Mbps:-96dBm, 11a 54Mbps:-78dBm 11ac VHT20_MCS0:-95dBm, 11ac VHT20_MCS11:-65dBm 11ac VHT40_MCS0:-93dBm, 11ac VHT40_MCS11:-62dBm 11ac VHT80_MCS0:-90dBm, 11ac VHT80_MCS11:-59dBm 11ac VHT160_MCS0:-87dBm, 11ac VHT160_MCS11:-54dBm 11ax HE20_MCS0:-94dBm, 11ax HE20_MCS11:-62Bm 11ax HE40_MCS0:-91dBm, 11ax HE40_MCS11:-59dBm 11ax HE80_MCS0:-88dBm, 11ax HE80_MCS11:-57dBm 11ax HE160_MCS0:-84dBm, 11ax HE160_MCS11:-54dBm 5 GHz_2: 11a 6Mbps:-96dBm, 11a 54Mbps:-78dBm 11ac VHT20_MCS0:-95dBm, 11ac VHT20_MCS11:-65dBm 11ac VHT40_MCS0:-93dBm, 11ac VHT40_MCS11:-62dBm 11ac VHT80_MCS0:-90dBm, 11ac VHT80_MCS11:-59dBm 11ac VHT160_MCS0:-87dBm, 11ac VHT160_MCS11:-54dBm 11ax HE20_MCS0:-94dBm, 11ax HE20_MCS11:-62Bm 11ax HE40_MCS0:-91dBm, 11ax HE40_MCS11:-59dBm 11ax HE80_MCS0:-88dBm, 11ax HE80_MCS11:-57dBm 11ax HE160_MCS0:-84dBm, 11ax HE160_MCS11:-54dBm 2.4 GHz: 11g 6Mbps:-97dBm, 11a 54Mbps:-79dBm 11n HT20_MCS0:-97dBm, 11n HT20_MCS7:-78dBm 11n HT40_MCS0:-95dBm, 11n HT40_MCS7:-75dBm 11ac VHT20_MCS0:-96dBm, 11ac VHT20_MCS11:-67dBm 11ac VHT40_MCS0:-94dBm, 11ac VHT40_MCS11:-64dBm 11ax HE20_MCS0:-96dBm, 11ax HE20_MCS11:-64dBm 11ax HE40_MCS0:-93dBm, 11ax HE40_MCS11:-61dBm |
