Tech Specification

|
WINDFORCE 2X COOLING SYSTEM The WINDFORCE 2X cooling system features 3 pure copper composite heat-pipes, heat-pipe direct touch GPU, 90mm unique blade fan design, 3D active fan with LED indicators, stylish metal back plate, together delivering an effective heat dissipation capacity for higher performance at lower temperatures. |
| 90MM UNIQUE BLADE FAN DESIGN The airflow is spilt by the triangle fan edge, and guided smoothly through the 3D stripe curve on the fan surface, effectively enhancing the air flow. |

|
 |
COMPOSITE HEAT-PIPES The composite heat-pipes combines both thermal conductivity and phase transition for efficiently managing the transfer of heat between two solid interfaces which increases 29% of cooling capacity. |
| 3 HEAT-PIPES DIRECT TOUCH The pure copper heat pipes are shaped to maximize the direct contact area to the GPU. |

|
 |
GAME IN STYLE RGB Fusion 2.0 With 16.7M customizable color options and numerous lighting effects, you can choose lighting effects or synchronize with other AORUS devices. |
|

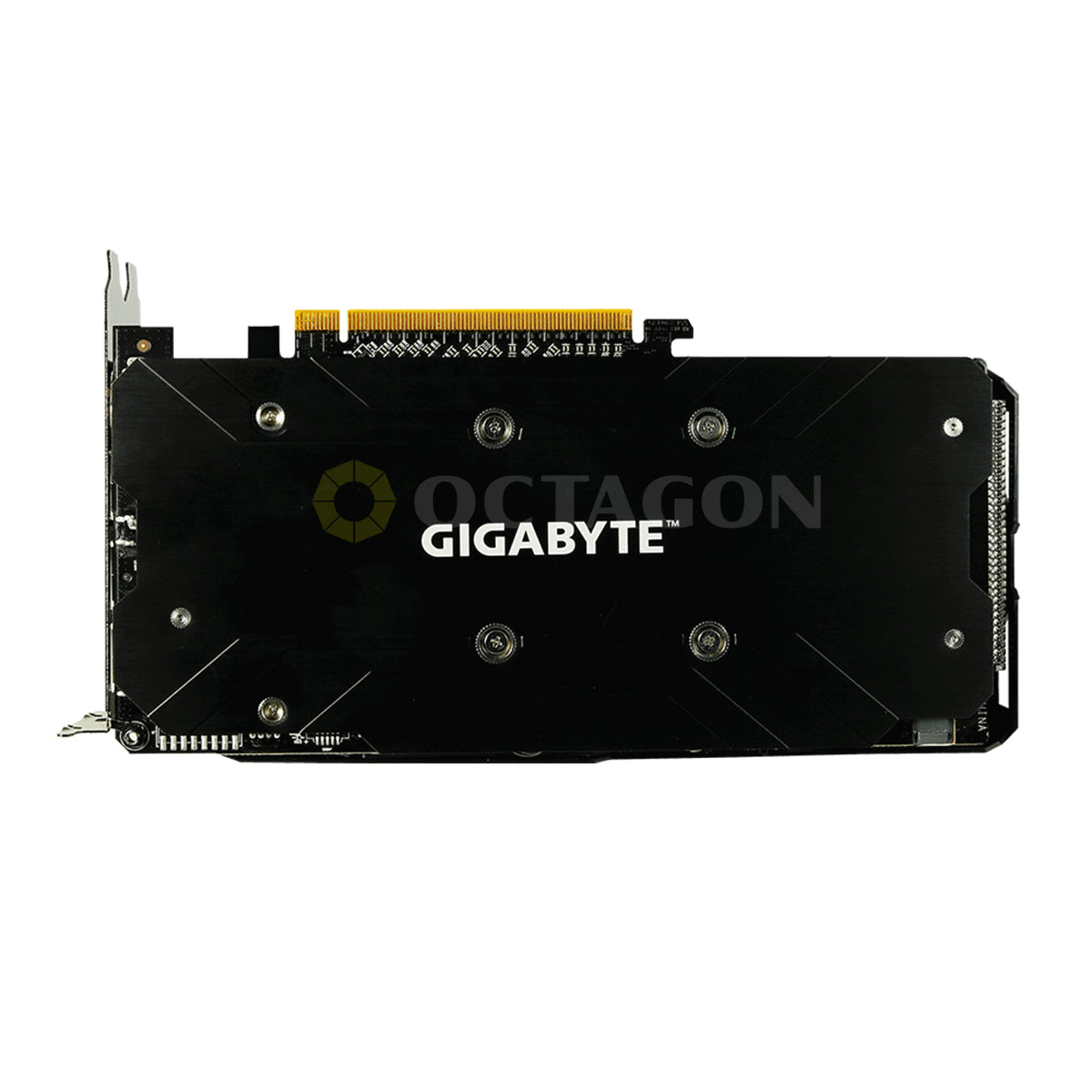

STYLISH METAL BACK PLATE The metal back plate offers rigidity and protection to the structure, while adding a sleek, clean look to the product. |

|
 |
ULTRA DURABLE MATERIALS Engineered with the highest-grade chokes and capacitors, this graphic card delivers outstanding performance and durable system lifespan. |
| IN TOTAL COMMAND (*The interface and functionality of the software is subject to each model.). |

|
Specification
| Model Name: | GIGABYTE RADEON RX570 GAMING 4G (V2) |
| Brand: | Gigabyte |
| Color: | Black |
| Graphics Processing: | Radeon RX570 |

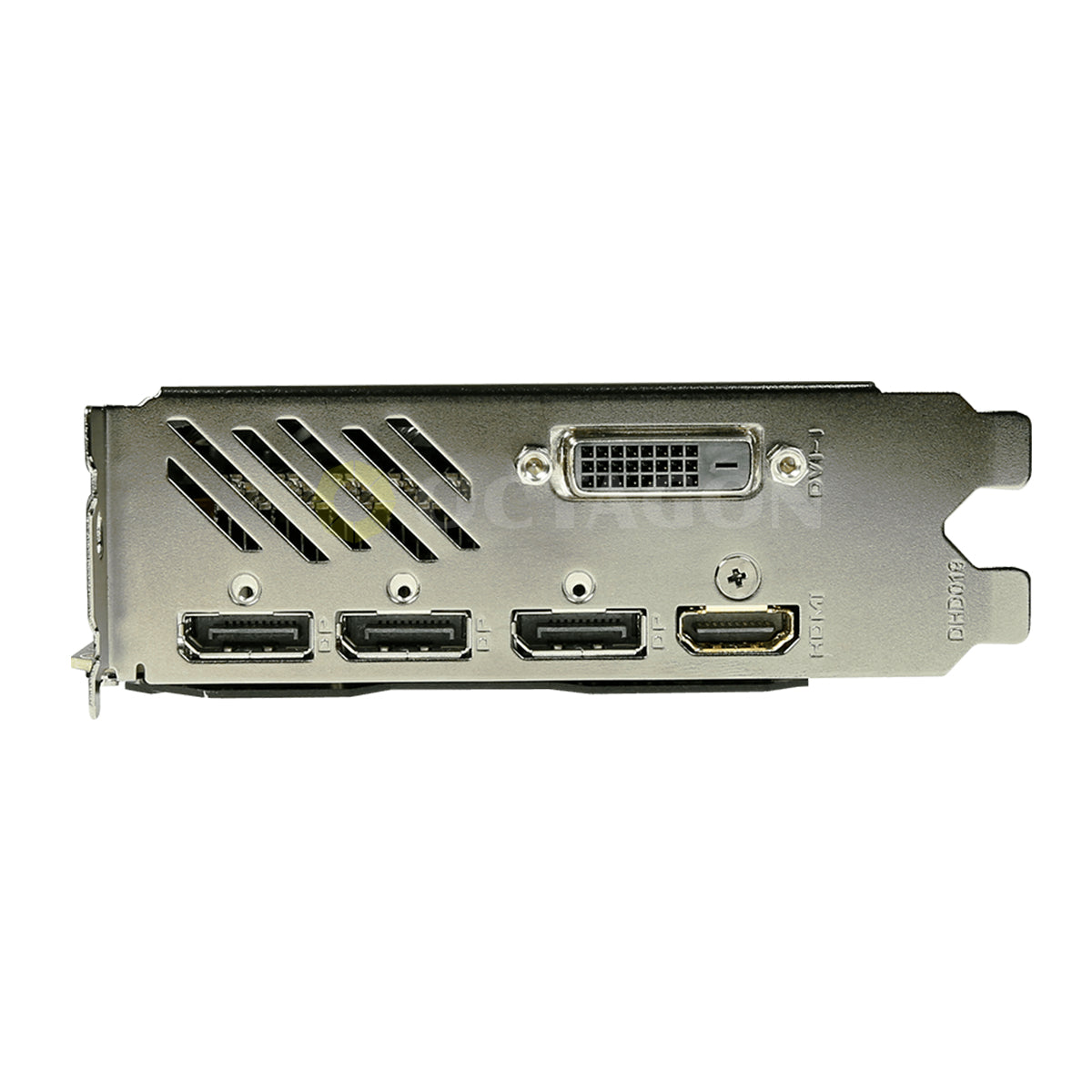

| I/O: | Dual-link DVI-D *1 HDMI 2.0b *1 | Display Port 1.4 *3 |
| Core Clock: | OC mode: up to 1255 MHz | Gaming mode: up to 1244 MHz |
| Stream Processors: | 2048 |
| Process Technology: | 14 nm |
| Memory Clock: | 7000 MHz |
| Memory Size: | 4 GB |
| Memory Type: | GDDR5 |
| Memory Bus: | 256 bit |
| Card Bus: | PCI-E 3.0 x 16 |
| Digital max resolution: | 7680x4320 |
| Multi-view: | 5 |
| Card size: | H=40 L=232 W=116 mm |
| PCB Form: | ATX |
| DirectX: | 12 |
| OpenGL: | 4.5 |
| Recommended PSU: | 450W |
| Power Connectors: | 8 pin*1 |
| Package Content: | 1. Graphics card quick guide | 2. Driver CD |
