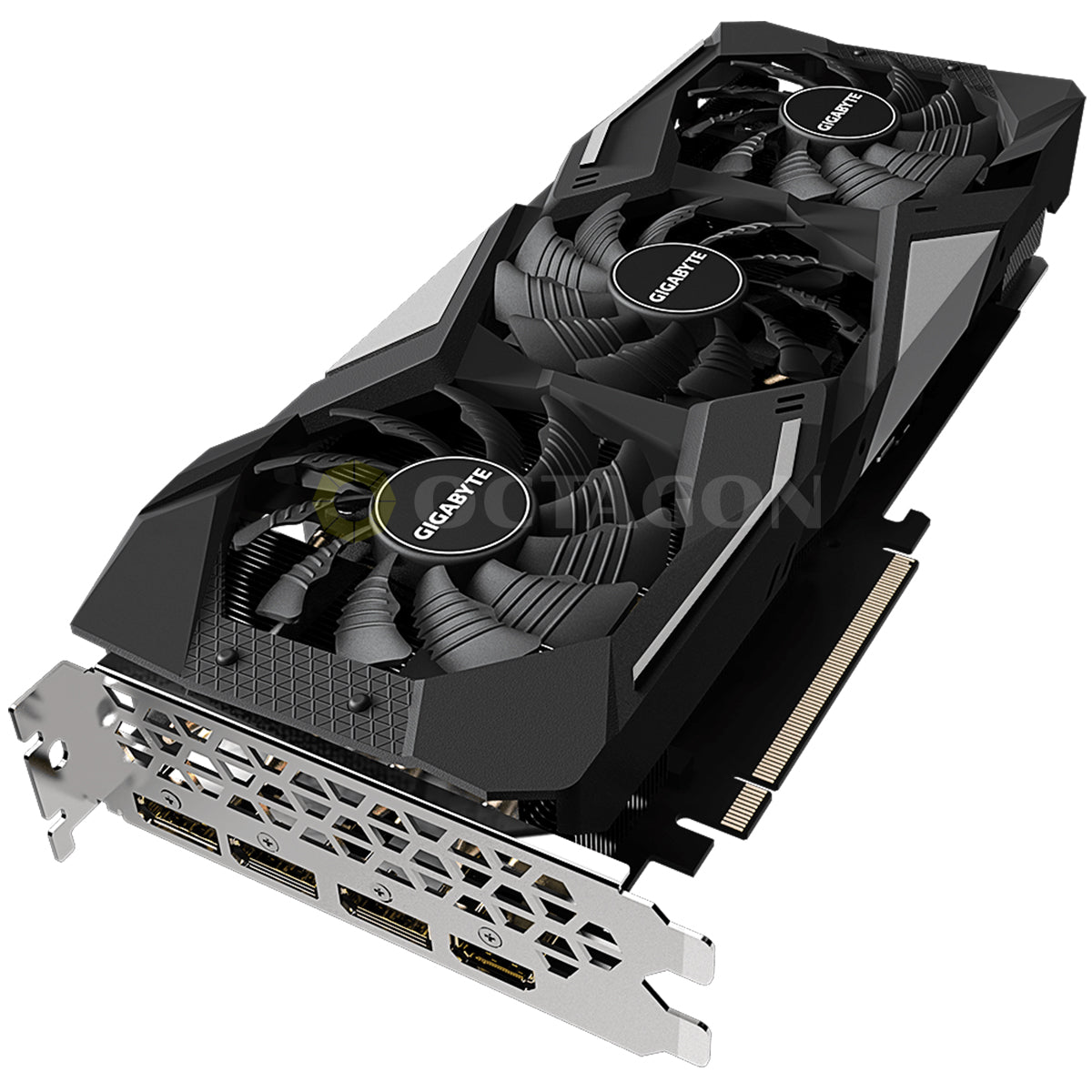

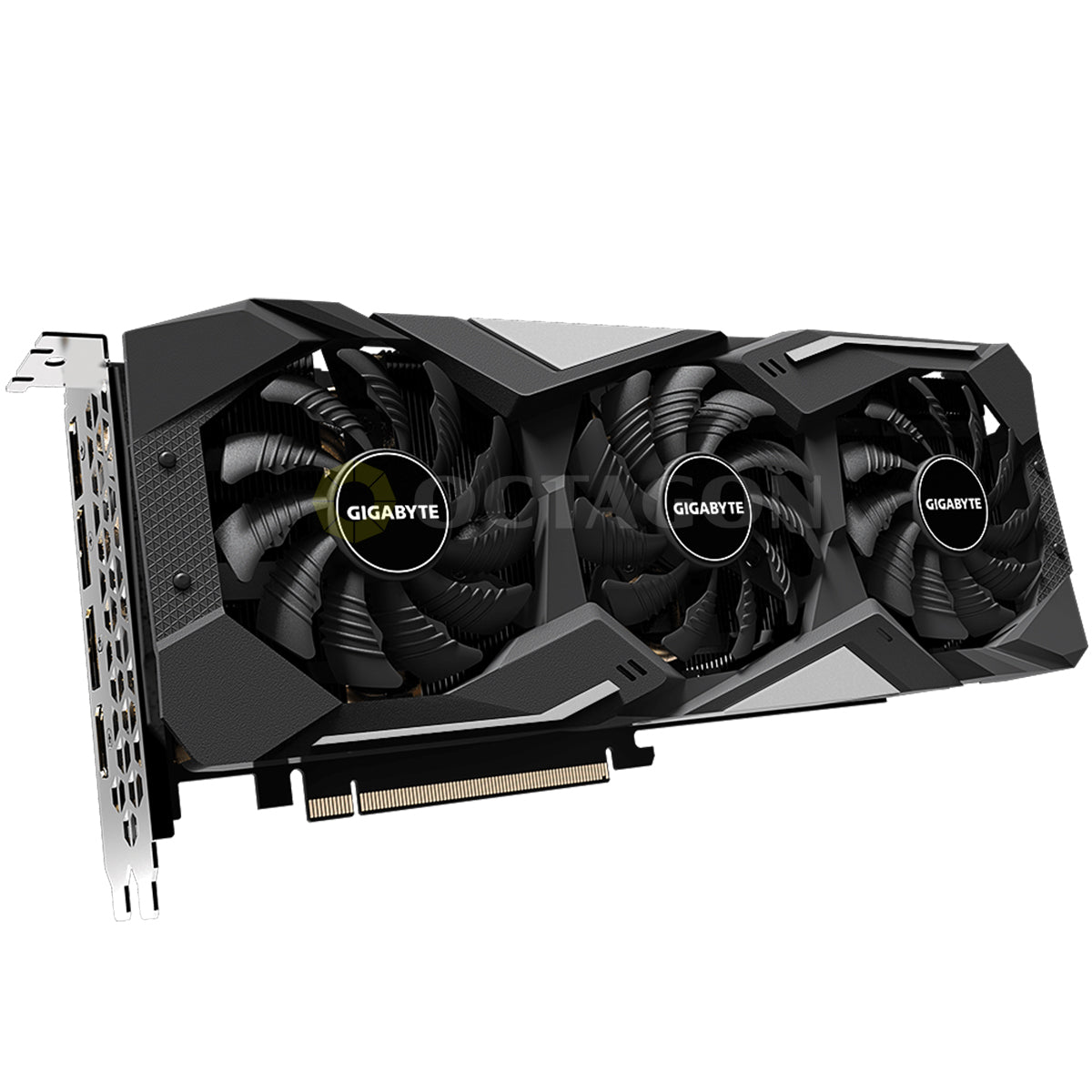

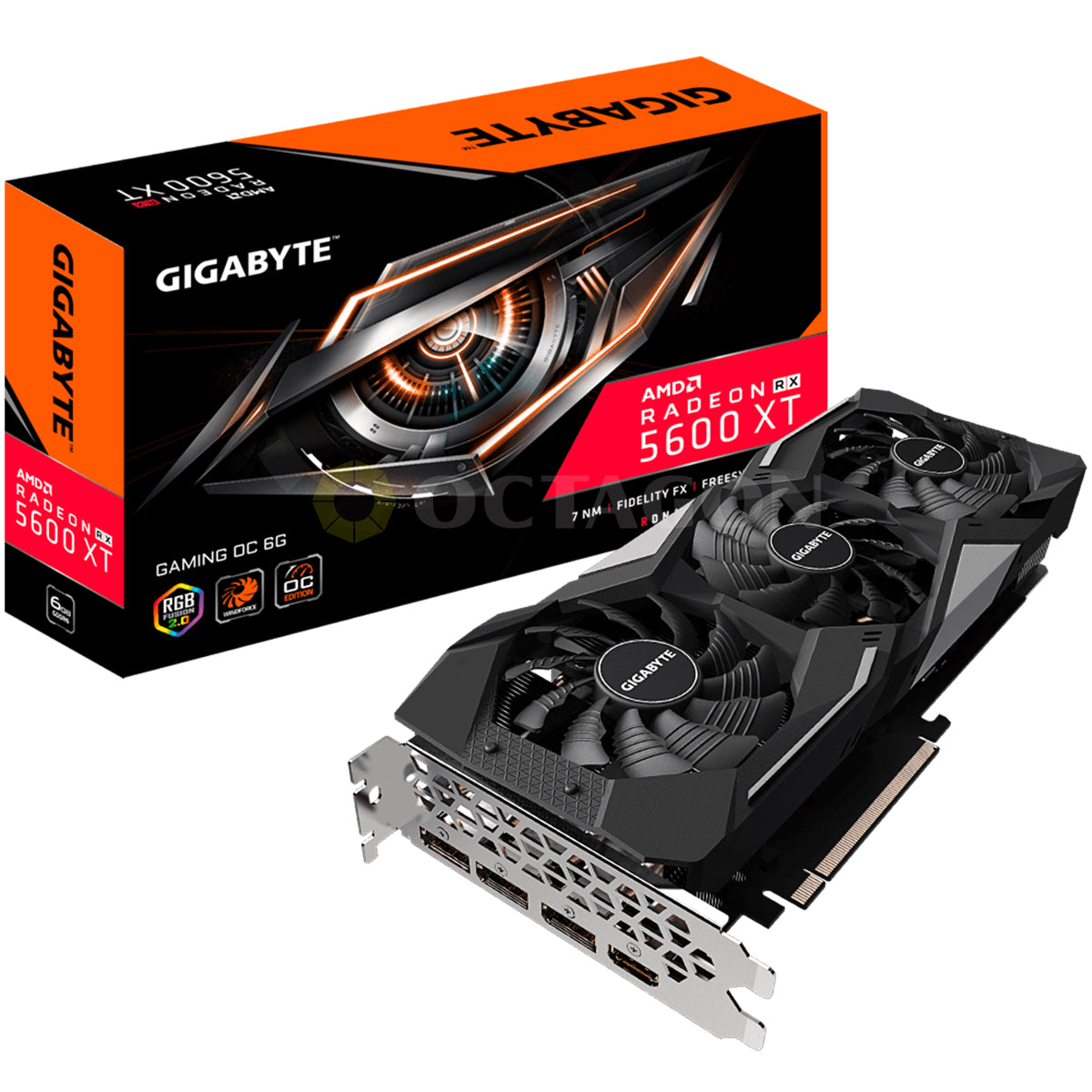

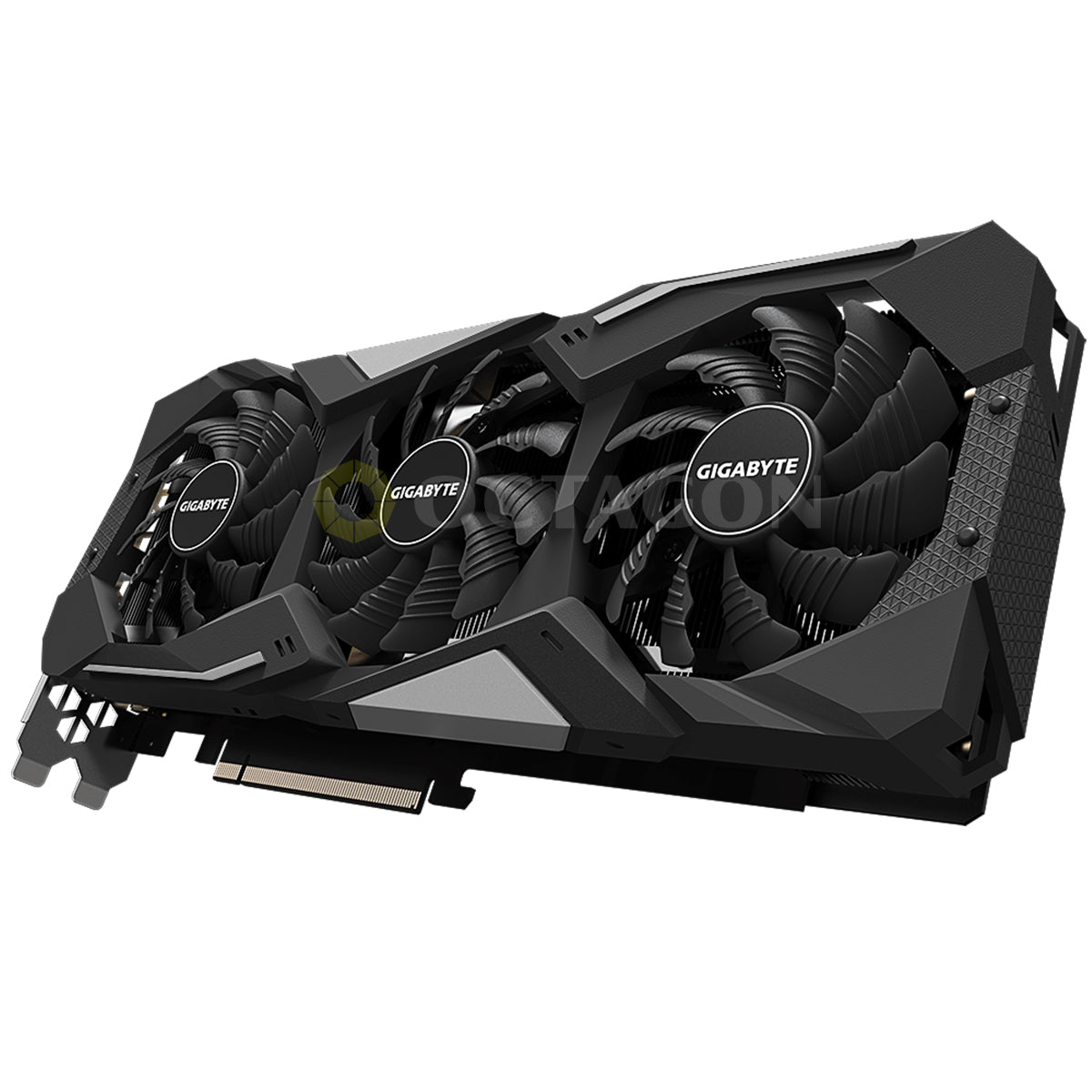

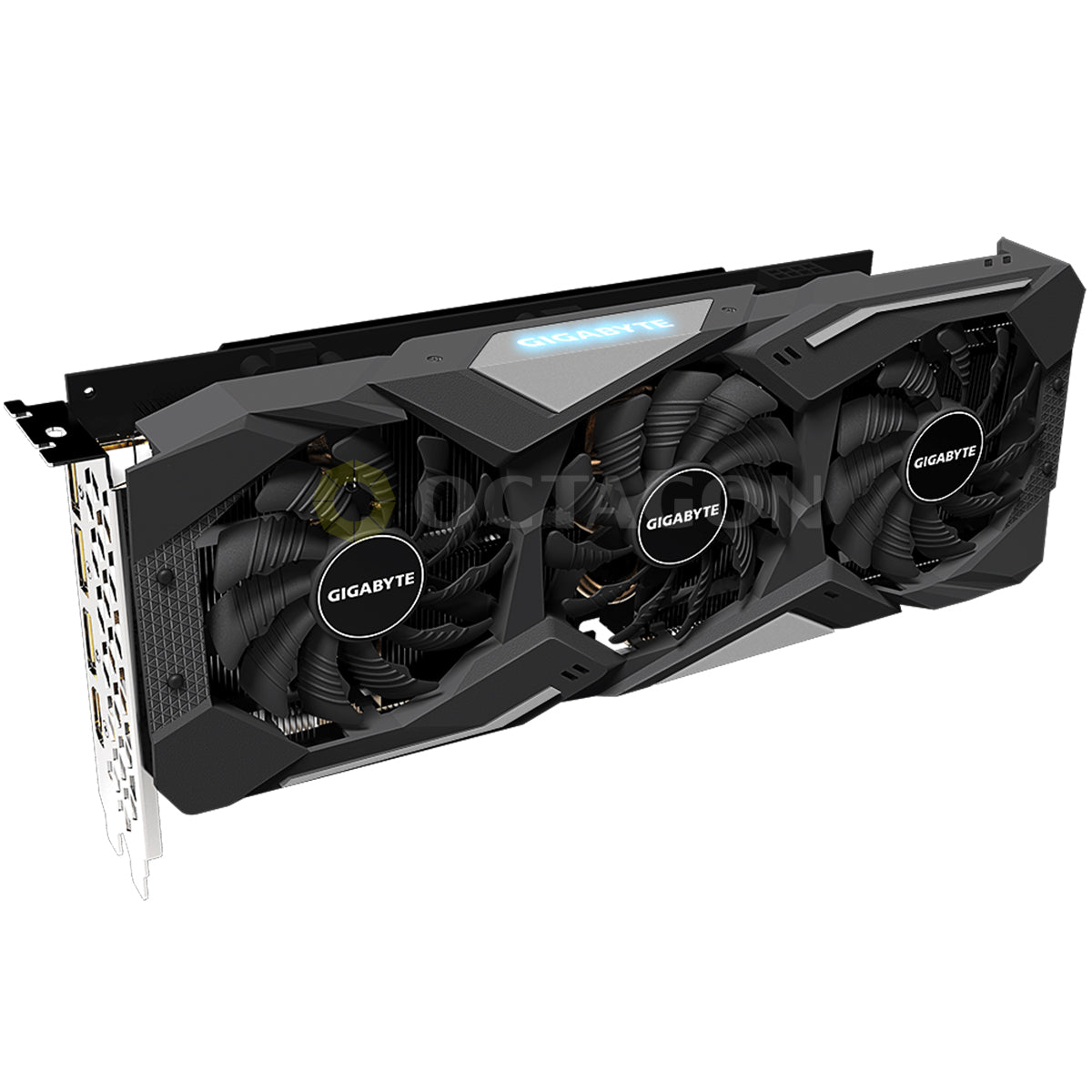

GIGABYTE RADEON RX5600XT GAMING OC 6G

  • Model Name:  GIGABYTE RADEON RX5600XT GAMING OC 6G
  • Brand: Gigabyte
  • Color: Black
  • Graphics Processing:    Radeon™ RX 5600 XT

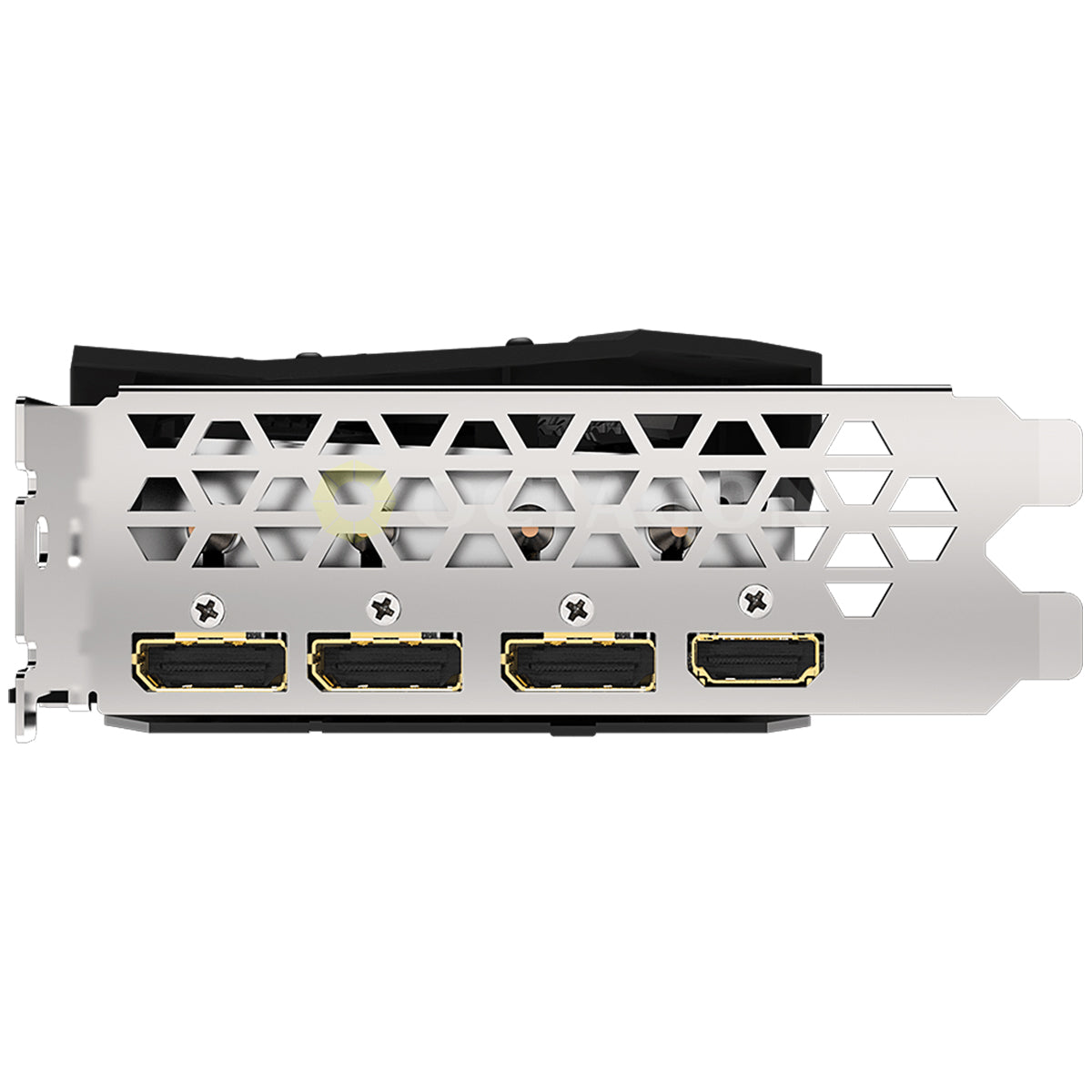

  • Output:    DisplayPort 1.4 *3 | HDMI 2.0b *1
  • Core Clock:    Boost Clock : up to 1620 MHz (Reference card: 1560 MHz) | Game Clock* : 1560 MHz (Reference card: 1375 MHz)MHz
₱19,940.00

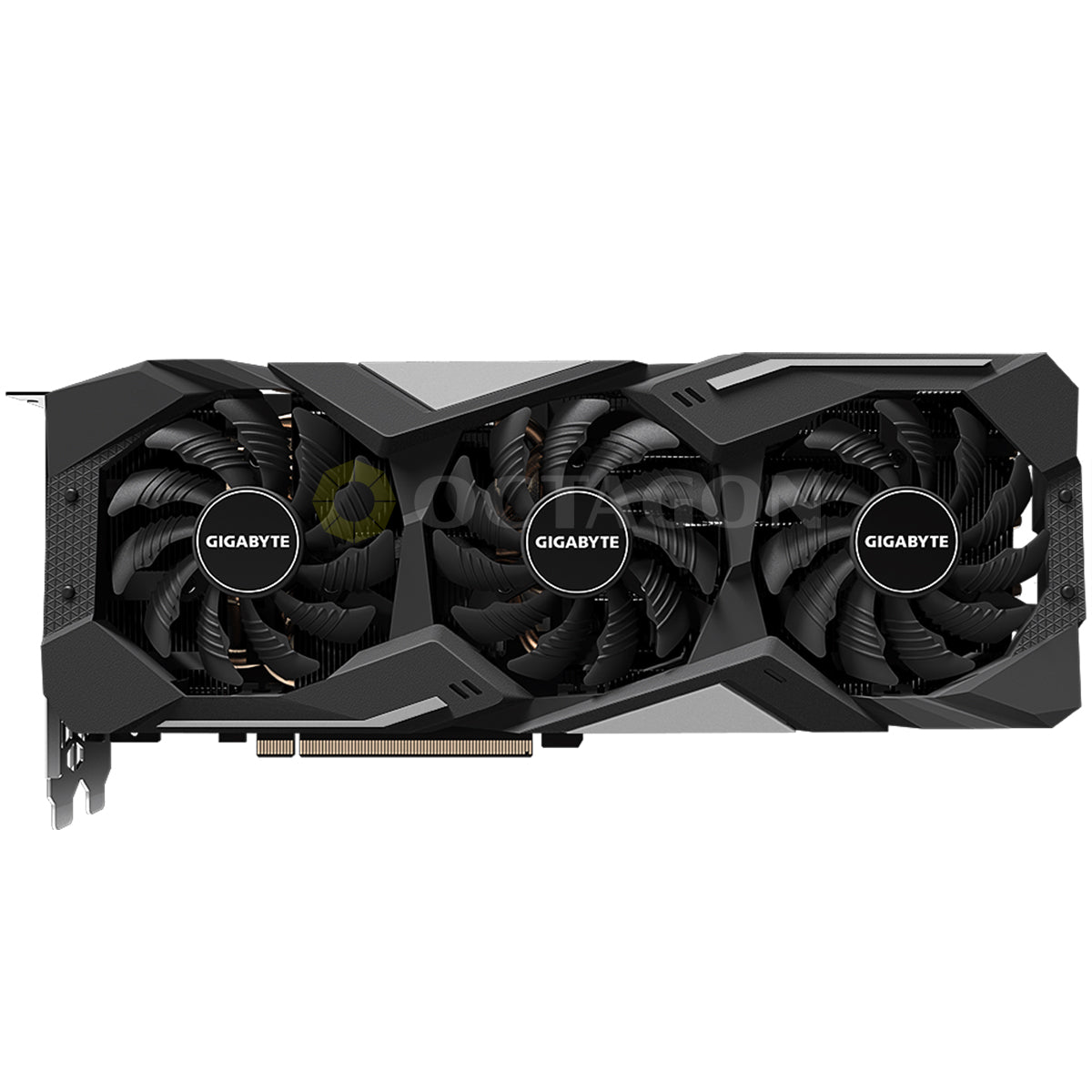

  WINDFORCE 3X COOLING SYSTEM
The WINDFORCE 3X cooling system features 3x 80mm unique blade fans, alternate spinning fan, 5 composite copper heat pipes, heat-pipe direct touch and 3D active fan functionality, together delivering an effective heat dissipation capacity for higher performance at lower temperatures.
ALTERNATE SPINNING
The GIGABYTE “Alternate Spinning” is the only solution that can solve the turbulent airflow of three fans. The biggest problem with the three fans is turbulence. Since the fans rotate in the same direction, the airflow direction is opposite between the fans, which will cause turbulent airflow and reduce heat dissipation efficiency. GIGABYTE turns the middle fan in the opposite direction, so that the airflow direction between the two fans is the same, reducing the turbulence and enhancing the airflow pressure.
UNIQUE BLADE FAN
The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface, effectively enhancing the airflow.
HEAT PIPES DIRECT TOUCH GPU
The shape of the pure copper heat pipes maximize the direct contact area with the GPU, enhancing heat transfer. The heat pipes also cover the VRAM through a large metal plate contact to ensure proper cooling.
COMPOSITE HEAT-PIPE
The composite heat-pipe combines thermal conductivity and phase transition to efficiently manage the heat transfer between two solid interfaces which increases cooling capacity.
GAME IN STYLE

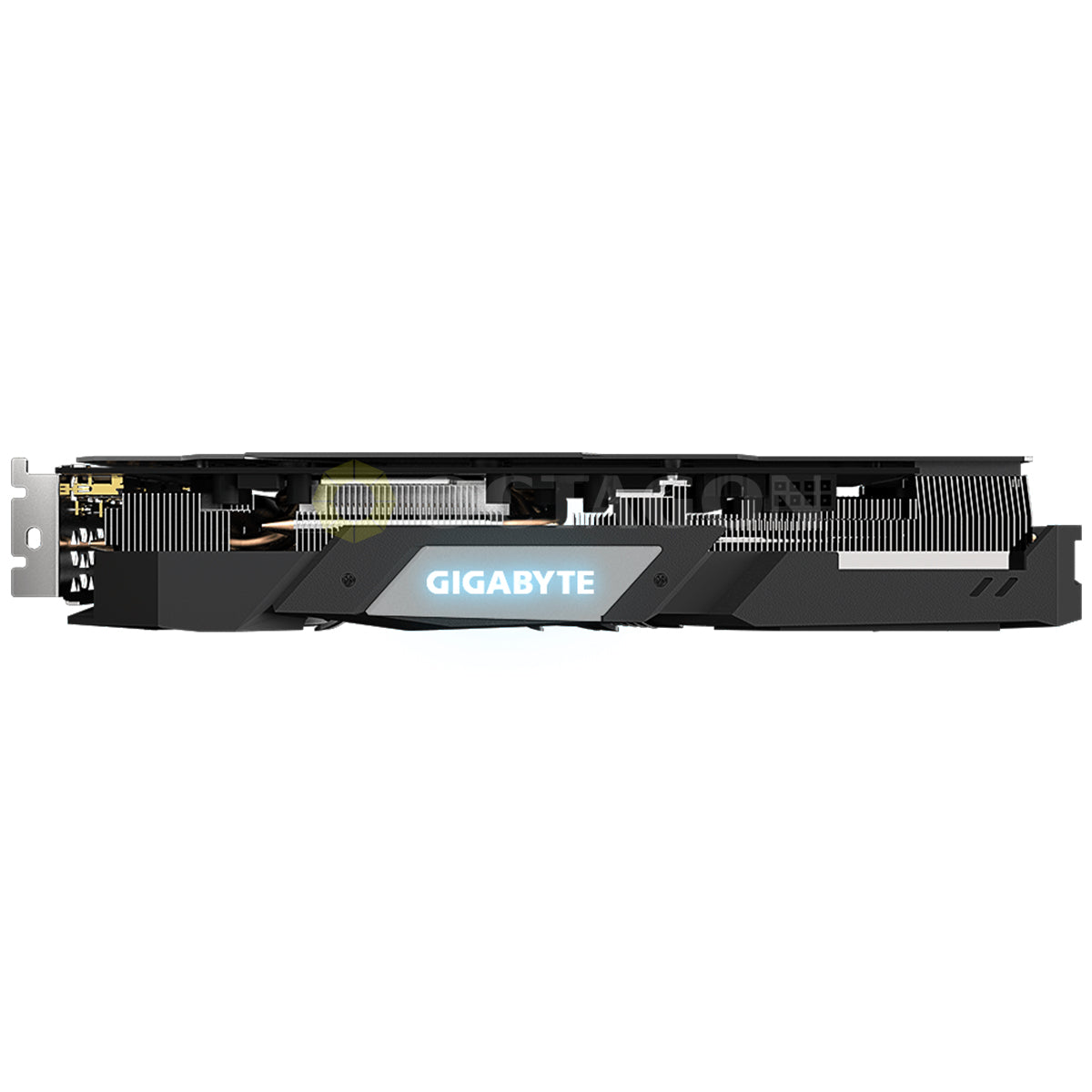

RGB FUSION 2.0
With 16.7M customizable color options and numerous lighting effects, you can choose lighting effects or synchronize with other AORUS devices.
EXTREME DURABILITY AND OVERCLOCKING
The graphics card uses the better power phases design to allow the MOSFET to operate at lower temperature, and over-temperature protection design and load balancing for each MOSFET, plus the Ultra Durable certified chokes and capacitors, to provide excellent performance and longer system life.
FRIENDLY PCB DESIGN
Fully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build.
POWER INDICATOR
The smart power LED indicator alerts the player when any PCI-E power supply is abnormal.

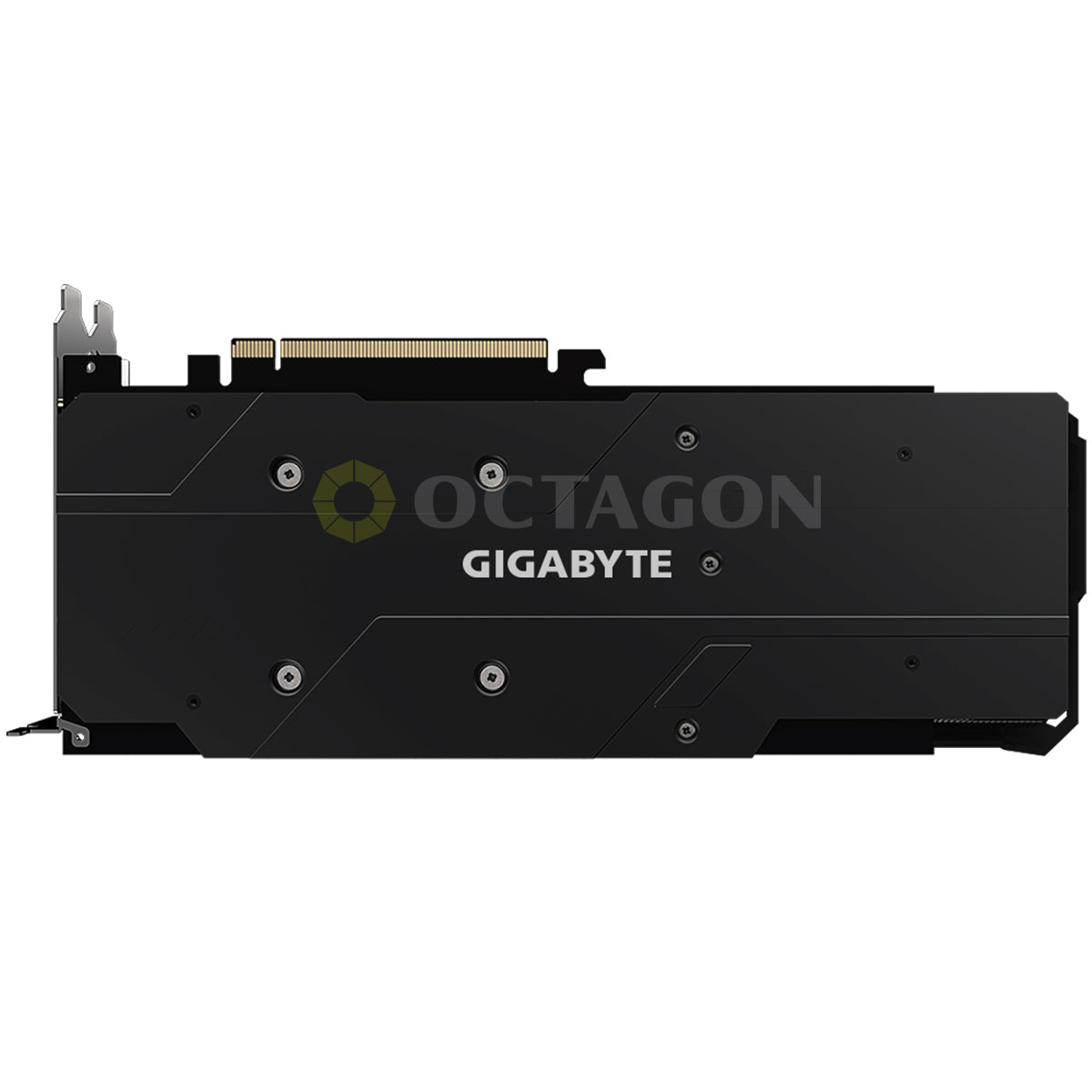

PROTECTION METAL BACK PLATE
The metal back plate not only provides an aesthetical shape, but also enhances the structure of the graphics card to provide complete protection.
PCI-E 4.0 SUPPORT
Gigabyte Radeon RX 5600 XT GAMING OC features PCI-Express 4.0 support, with a throughput of 16 GT/s and enables two times the bandwidth compared to PCI Express 3.0. With the PCI-Express 4.0 supported motherboard, and get ready for the next generation of PC gaming.
IN TOTAL COMMAND
The interface and functionality of the software is subject to each model.

  WINDFORCE 3X COOLING SYSTEM
The WINDFORCE 3X cooling system features 3x 80mm unique blade fans, alternate spinning fan, 5 composite copper heat pipes, heat-pipe direct touch and 3D active fan functionality, together delivering an effective heat dissipation capacity for higher performance at lower temperatures.
ALTERNATE SPINNING
The GIGABYTE “Alternate Spinning” is the only solution that can solve the turbulent airflow of three fans. The biggest problem with the three fans is turbulence. Since the fans rotate in the same direction, the airflow direction is opposite between the fans, which will cause turbulent airflow and reduce heat dissipation efficiency. GIGABYTE turns the middle fan in the opposite direction, so that the airflow direction between the two fans is the same, reducing the turbulence and enhancing the airflow pressure.
UNIQUE BLADE FAN
The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface, effectively enhancing the airflow.
HEAT PIPES DIRECT TOUCH GPU
The shape of the pure copper heat pipes maximize the direct contact area with the GPU, enhancing heat transfer. The heat pipes also cover the VRAM through a large metal plate contact to ensure proper cooling.
COMPOSITE HEAT-PIPE
The composite heat-pipe combines thermal conductivity and phase transition to efficiently manage the heat transfer between two solid interfaces which increases cooling capacity.
GAME IN STYLE
RGB FUSION 2.0
With 16.7M customizable color options and numerous lighting effects, you can choose lighting effects or synchronize with other AORUS devices.
EXTREME DURABILITY AND OVERCLOCKING
The graphics card uses the better power phases design to allow the MOSFET to operate at lower temperature, and over-temperature protection design and load balancing for each MOSFET, plus the Ultra Durable certified chokes and capacitors, to provide excellent performance and longer system life.
FRIENDLY PCB DESIGN
Fully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build.
POWER INDICATOR
The smart power LED indicator alerts the player when any PCI-E power supply is abnormal.
PROTECTION METAL BACK PLATE
The metal back plate not only provides an aesthetical shape, but also enhances the structure of the graphics card to provide complete protection.
PCI-E 4.0 SUPPORT
Gigabyte Radeon RX 5600 XT GAMING OC features PCI-Express 4.0 support, with a throughput of 16 GT/s and enables two times the bandwidth compared to PCI Express 3.0. With the PCI-Express 4.0 supported motherboard, and get ready for the next generation of PC gaming.
IN TOTAL COMMAND
The interface and functionality of the software is subject to each model.

Model Name:  GIGABYTE RADEON RX5600XT GAMING OC 6G
Brand: Gigabyte
Color: Black
Graphics Processing: Radeon™ RX 5600 XT
Output: DisplayPort 1.4 *3 | HDMI 2.0b *1
Core Clock: Boost Clock : up to 1620 MHz (Reference card: 1560 MHz) | Game Clock* : 1560 MHz (Reference card: 1375 MHz)MHz
Stream Processors: 2‎304
Process Technology: 7‎ nm
Memory Clock: 1‎2000 MHz**
Memory Size: 6‎ GB
Memory Type: GDDR6
Memory Bus: 1‎92 bit
Card Bus: PPCI-E 4.0 x 16
Digital max resolution: 7‎680x4320@60Hz
Multi-view: 4‎
Card size: L=279.85 W=114.35 H=49.55 mm
PCB Form: ATX
DirectX: 1‎2
OpenGL: 4‎.6
Recommended PSU: 4‎50W
Power Connectors: 8‎ Pin*1
Accessories:  Quick Guide
