|WINDFORCE 2X COOLING SYSTEM
WINDFORCE 2X cooling system features 2x 100mm unique blade fans, alternate spinning fan, 2 composite copper heat pipes direct touch GPU and 3D active fan, together delivering an effective heat dissipation.
The GIGABYTE patent “Alternate Spinning” is the only solution that can solve the turbulent airflow of adjacent fans. Since the adjacent fans rotate in the same direction, the airflow direction is opposite between the fans, which will cause turbulent airflow and reduce heat dissipation efficiency. GIGABYTE turns the adjacent fans in the opposite direction, so that the airflow direction between the two fans is the same, reducing the turbulence and enhancing the airflow pressure.
|UNIQUE BLADE FAN
The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface, effectively enhancing the airflow.
|HEAT PIPES DIRECT TOUCH GPU
The shape of the pure copper heat pipes maximizes the direct contact area with the GPU, enhancing heat transfer. The heat pipes also cover the VRAM through a large metal plate contact to ensure proper cooling.
The composite heat-pipe combines thermal conductivity and phase transition to efficiently manage the heat transfer between two solid interfaces which increases cooling capacity.
|EXTREME DURABILITY AND OVERCLOCKING
The graphics card uses the 6+2 power phase design to allow the MOSFET to operate at lower temperature, and over-temperature protection design and load balancing for each MOSFET, plus the Ultra Durable certified chokes and capacitors, to provide excellent performance and longer system life. (Reference card is 5+2 power phase)
|PROTECTION BACK PLATE
The back plate not only provides an aesthetical shape, but also enhances the structure of the graphics card to provide complete protection.
|IN TOTAL COMMAND
The interface and functionality of the software is subject to each model.

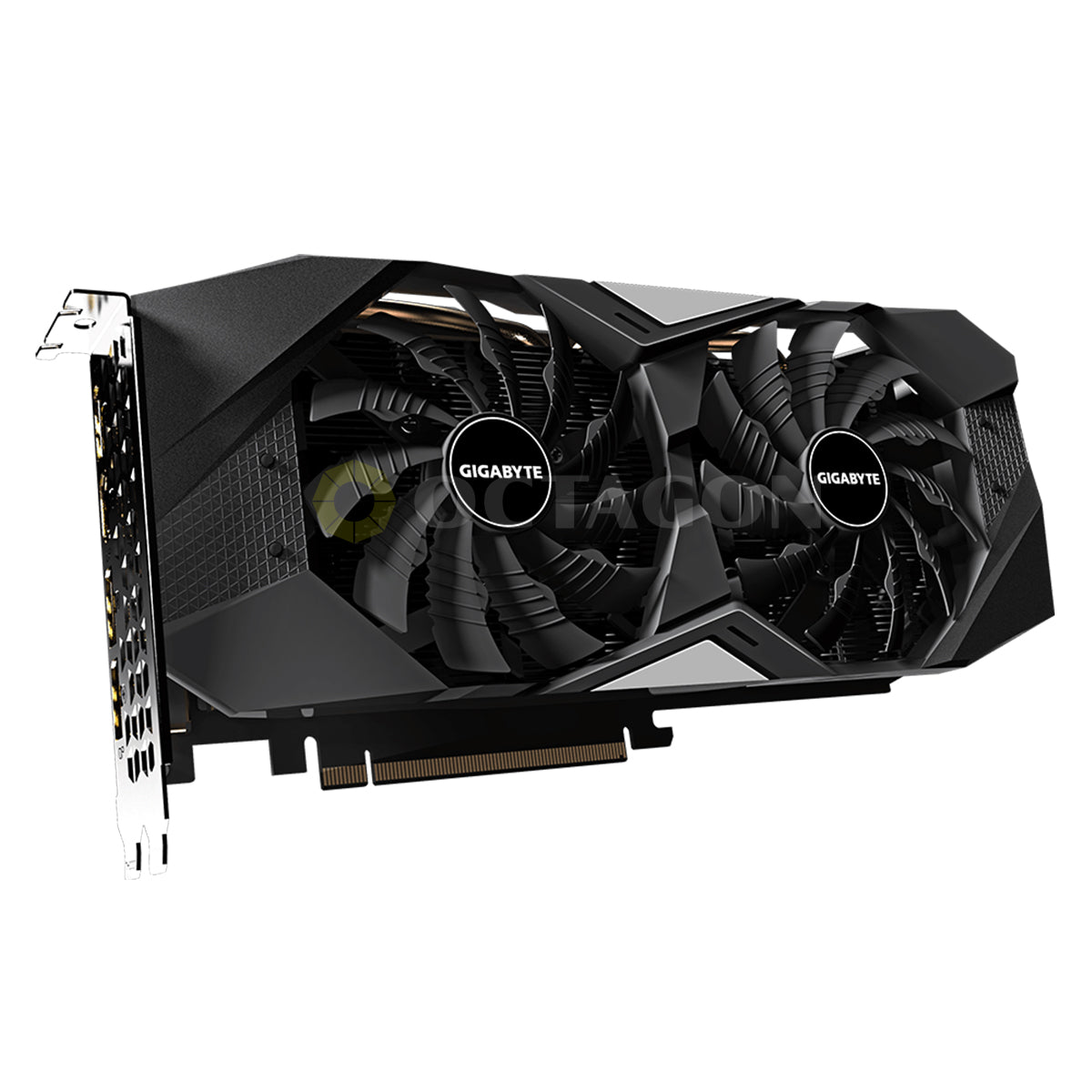

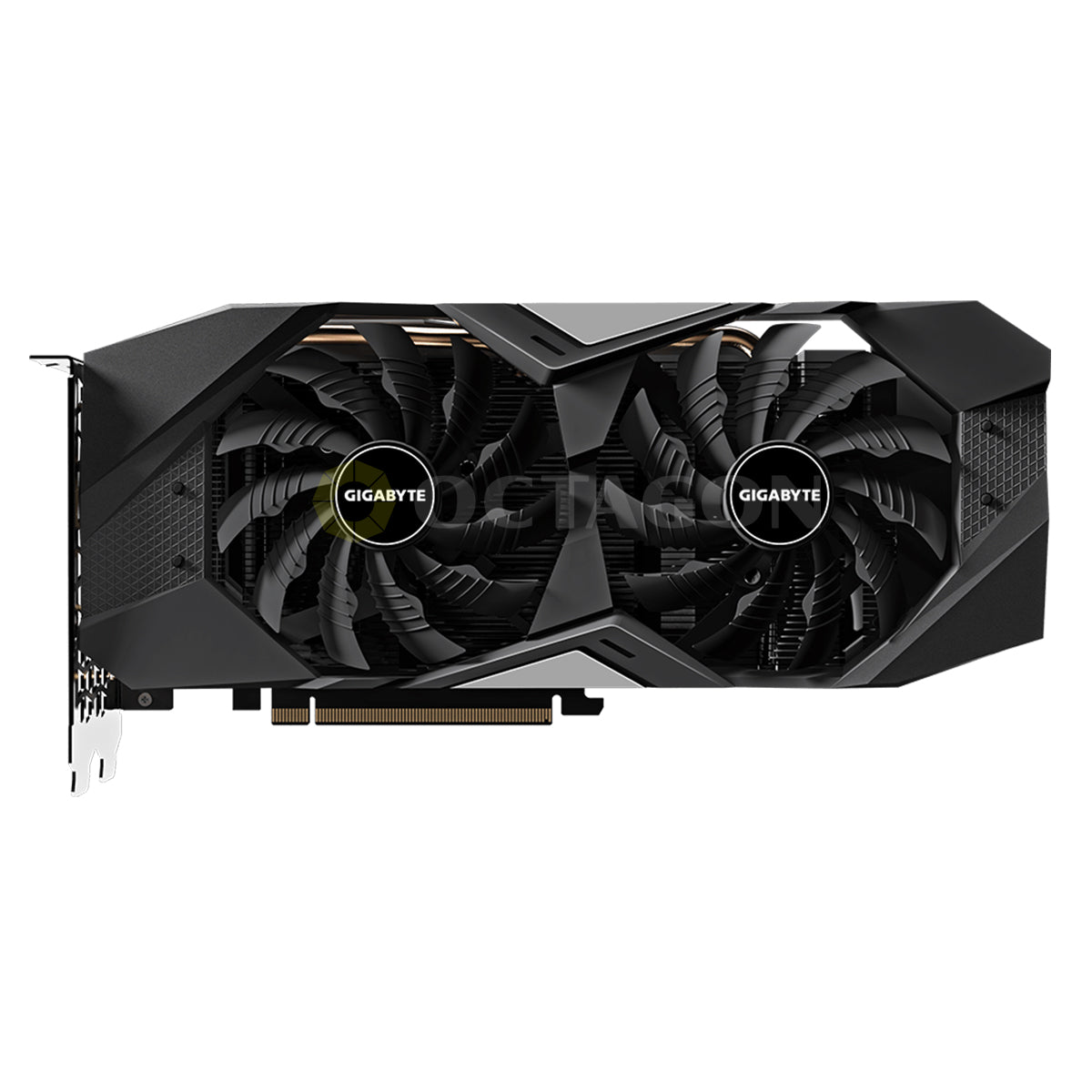

|Model Name:||GIGABYTE RTX2060 SUPER WINDFORCE OC 8GB|
|Graphics Processing:||GeForce® RTX 2060 SUPER™ | Core Clock:1680 MHz (Reference Card: 1650 MHz)|

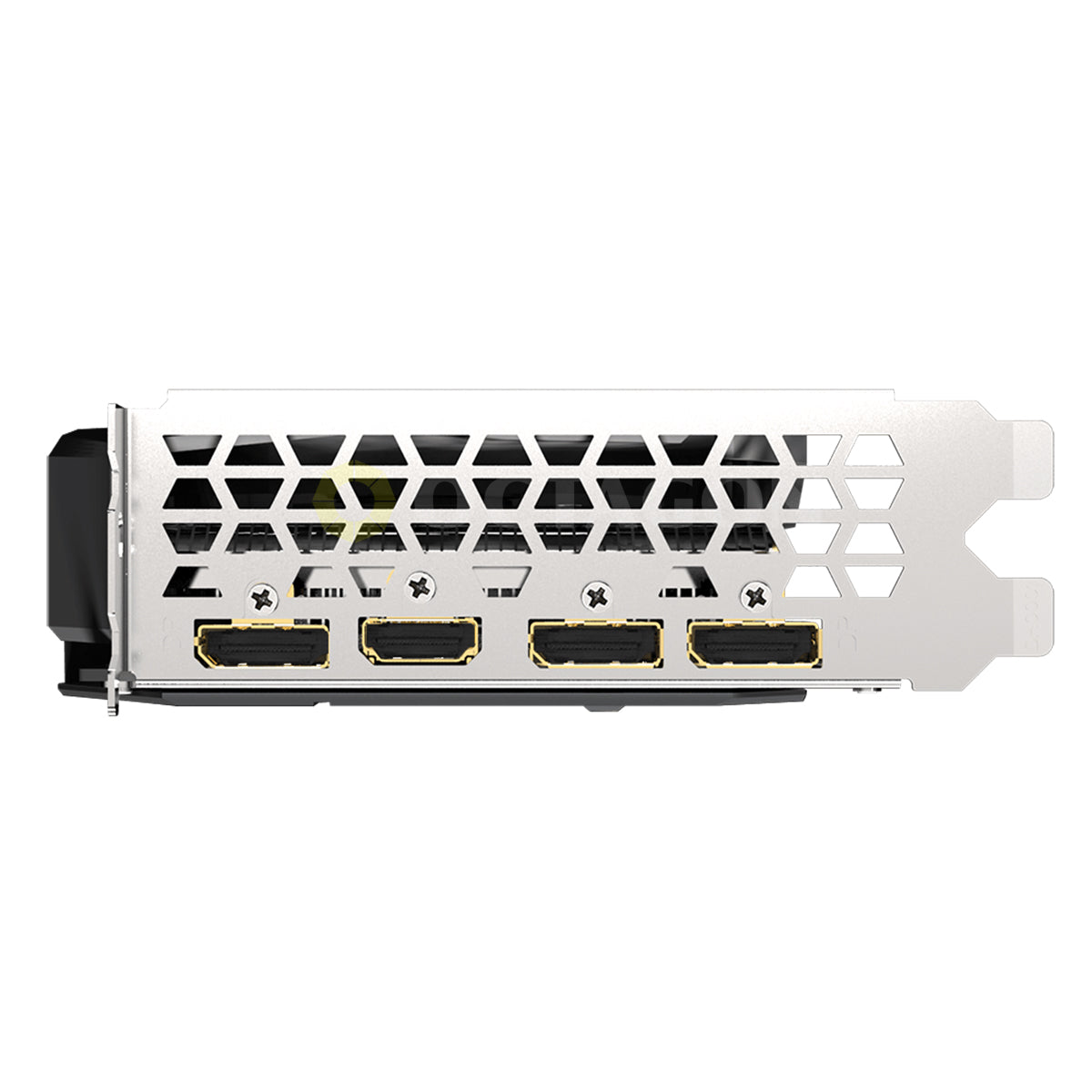

|Output:||DisplayPort 1.4 *3 | HDMI 2.0b *1|
|Memory Clock:||14000 MHz|
|Memory Size:||8 GB|
|Memory Bus:||256 bit|
|Card Bus:||PCI-E 3.0 x 16|
|Digital max resolution:||7680x4320@60Hz|
|Card size:||L=265 W=121 H=40 mm|
|Power Connectors:||8 Pin*1|
|Accessories:||1. Quick guide | 2. Driver CD|
