Tech Specification
|
 |
 |
 |
 |
 |
 |
 |
 |
Specification
| Model Name: | COOLER MASTER NR200P |
| Brand: | Cooler Master |
| Color: | Black and White |
| SERIES: | MasterBox Series |
| SIZE: | Mini ITX |
| AVAILABLE COLOR(S): | Black, White |
| MATERIALS: | Steel, Plastic, Mesh, Tempered Glass |
| DIMENSIONS (L X W X H): | 376 x 185 x 292mm incl. Protrusions, 360 x 185 x 274mm excl. Protrusions |
| VOLUME (EXLC. PROTRUSIONS): | 18.25L |
| MOTHERBOARD SUPPORT: | Mini DTX, Mini ITX, Max MB size: 244 x 226mm (L x H) |
| EXPANSION SLOTS: | 3 |
| 5.25" DRIVE BAYS: | 0 |
| 3.5" DRIVE BAYS: | 1 (Max. 2) |

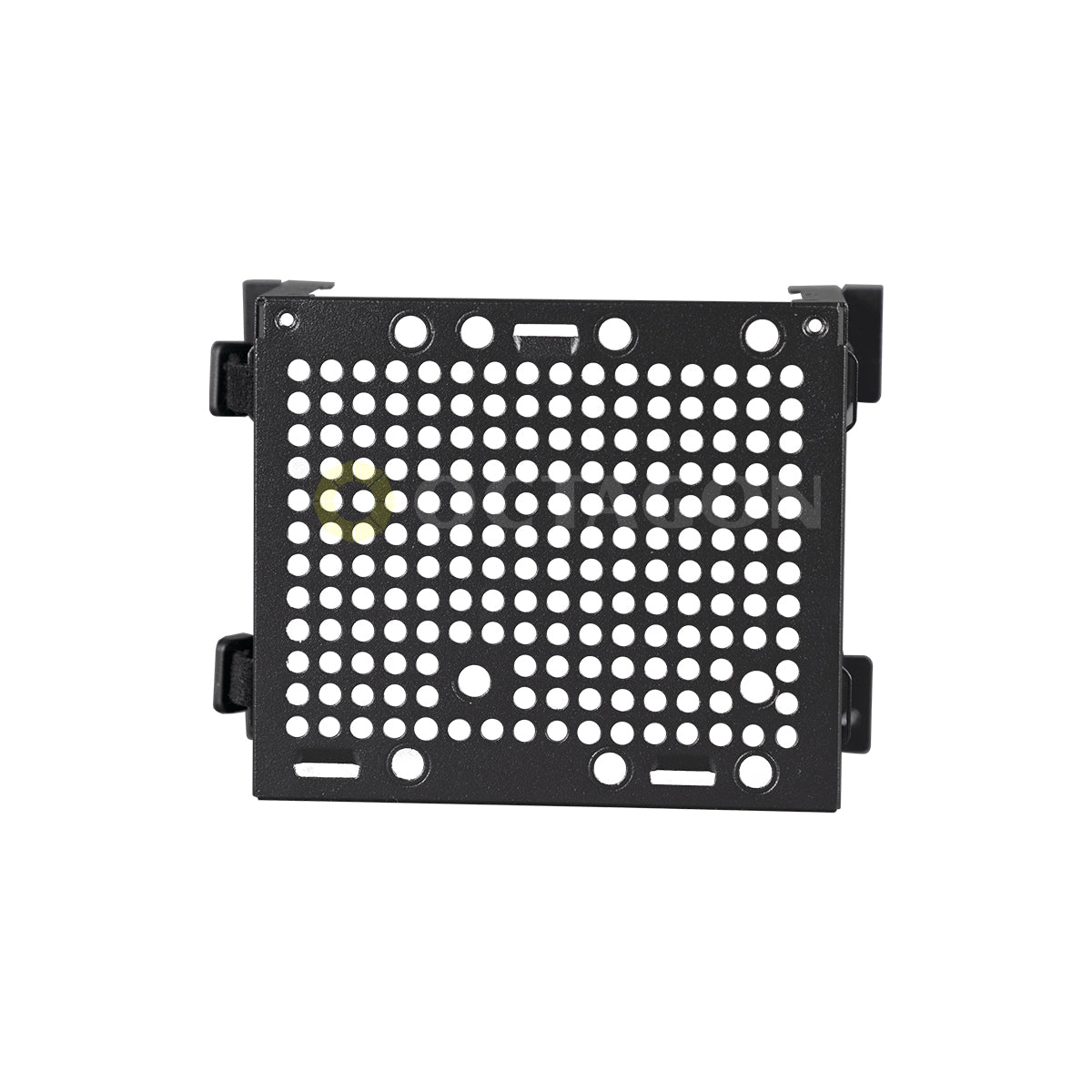

| 2.5" / 3.5" DRIVE BAYS (COMBO): | 1 |
| 2.5" DRIVE BAYS: | 2 (Max. 3) |
| I/O PANEL: | 2x USB 3.2 Gen 1 Type-A, 1x 3.5mm Headset Jack (Audio+Mic) |
| PRE-INSTALLED FANS - | TOP: 2x 120mm 650-1800RPM PWM (SickleFlow) |
| PRE-INSTALLED FANS | FRONT: N/A |
| PRE-INSTALLED FANS - | REAR: N/A |
| PRE-INSTALLED FANS - | BOTTOM: N/A |
| FAN SUPPORT - | TOP: 2x 120mm |
| FAN SUPPORT - | REAR: 1x 92mm |
| FAN SUPPORT - | SIDE: 2x 120/140mm |
| RADIATOR SUPPORT - | TOP: N/A |
| RADIATOR SUPPORT - | REAR: 92mm (not compatible with vertical GPU installation) |
| RADIATOR SUPPORT - | SIDE: 120mm, 140mm, 240mm, 280mm, (max width 141mm, not compatible with vertical GPU installation) |
| CLEARANCE - | CPU COOLER: 76mm (GPU in vertical position), 153mm (tempered glass side panel), 155mm (vented steel side panel) |
| CLEARANCE -PSU: | 130mm |
| CLEARANCE -GFX: L: | 330mm (incl. power connector), H: 156mm (incl. power connector), W: 60mm (triple slot) |
| DUST FILTERS: | Top, Bottom, Left side, Right side |
| POWER SUPPLY SUPPORT: | SFX, SFX-L |
| WEIGHT: | 5.1 kg |
| ACCESSORIES: | 1x PCIe 3.0 x16 riser cable |
| NOTE: | Single slot water-cooler GPUs or vertically mounted GPUs are recommended when using bottom radiator position, This product is only compatible for devices that support the PCI-E 3.0 specification. If you use this product with a motherboard that supports PCI-E 4.0, please enter into BIOS option and select PCI-E 3.0 before installation. |
