Tech Specification
|

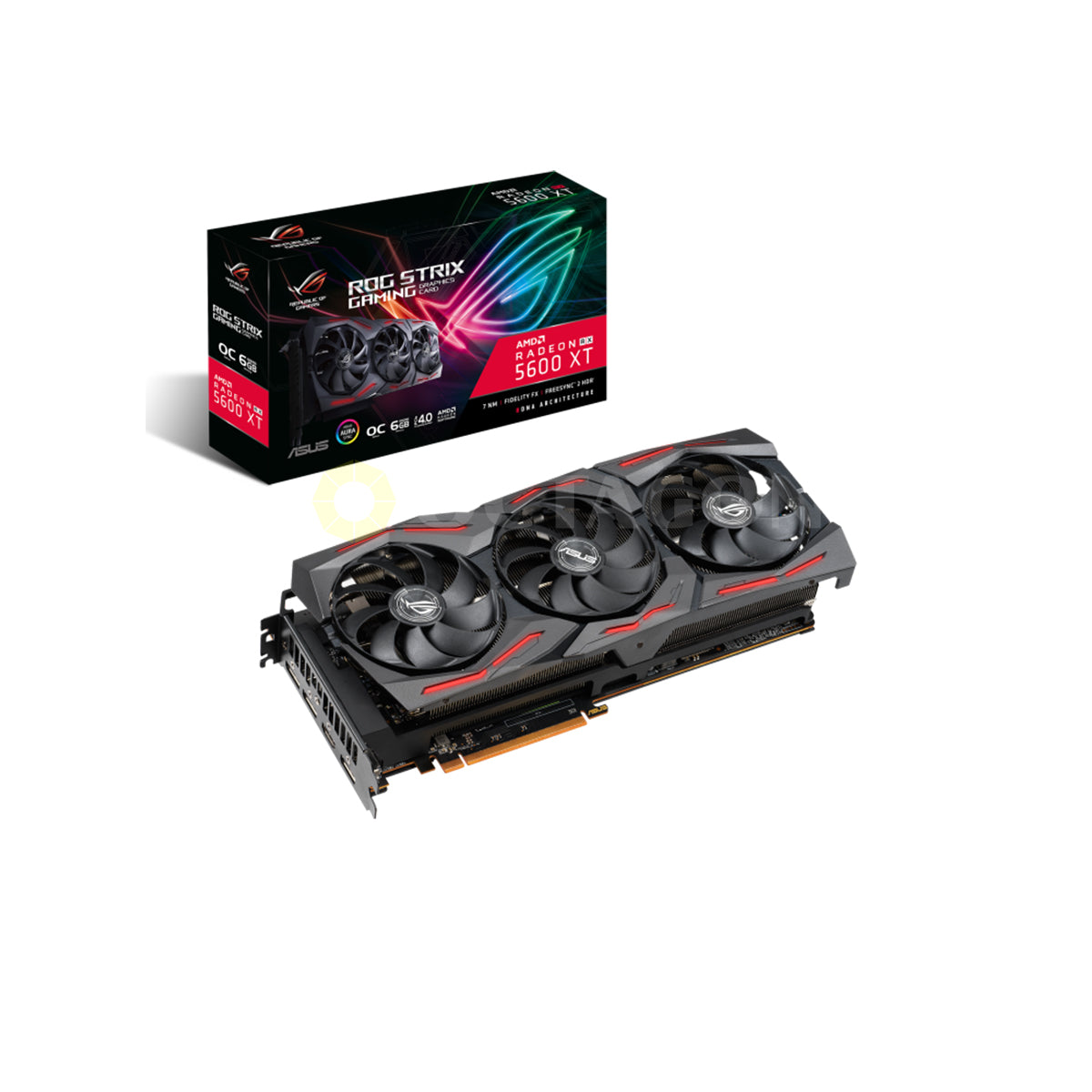

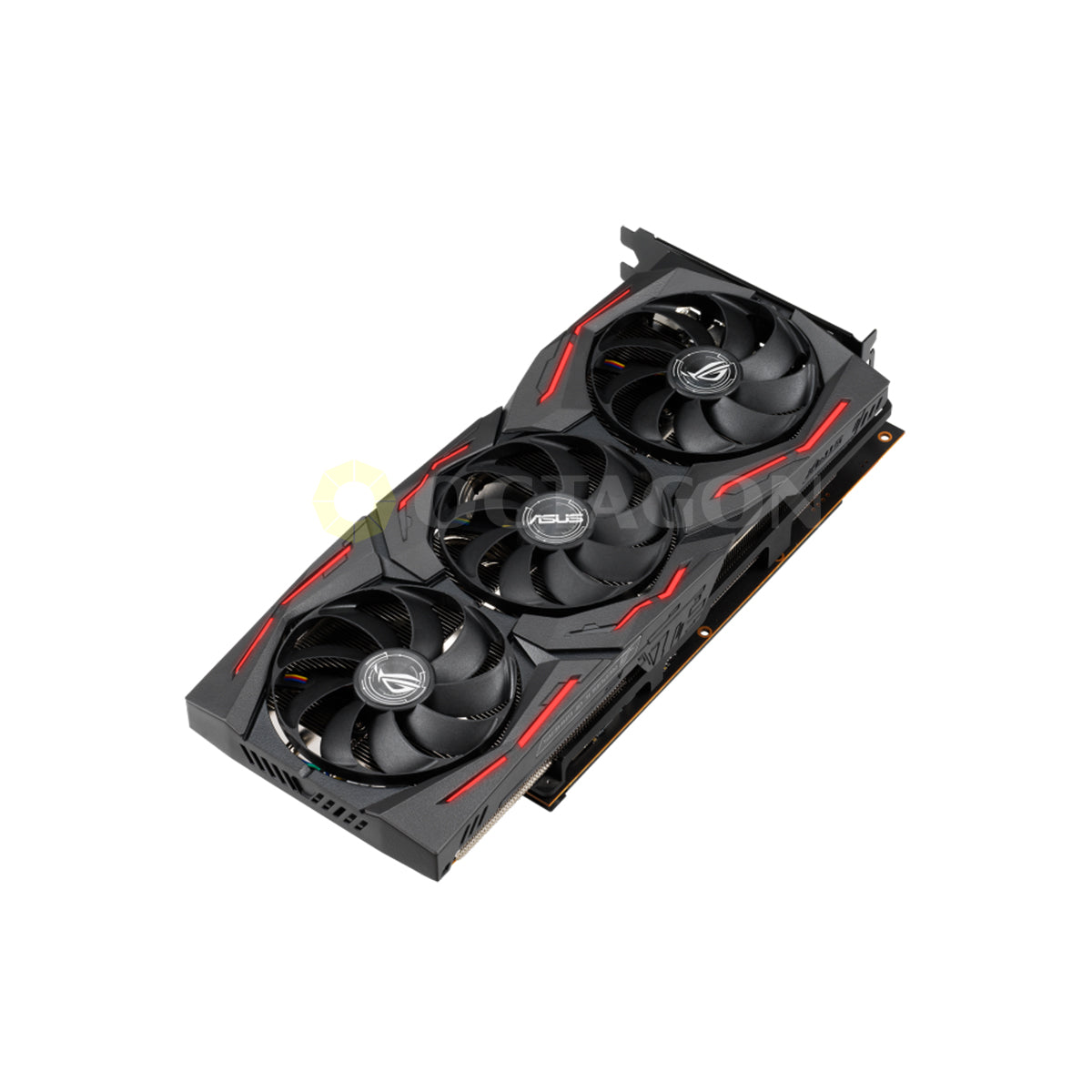

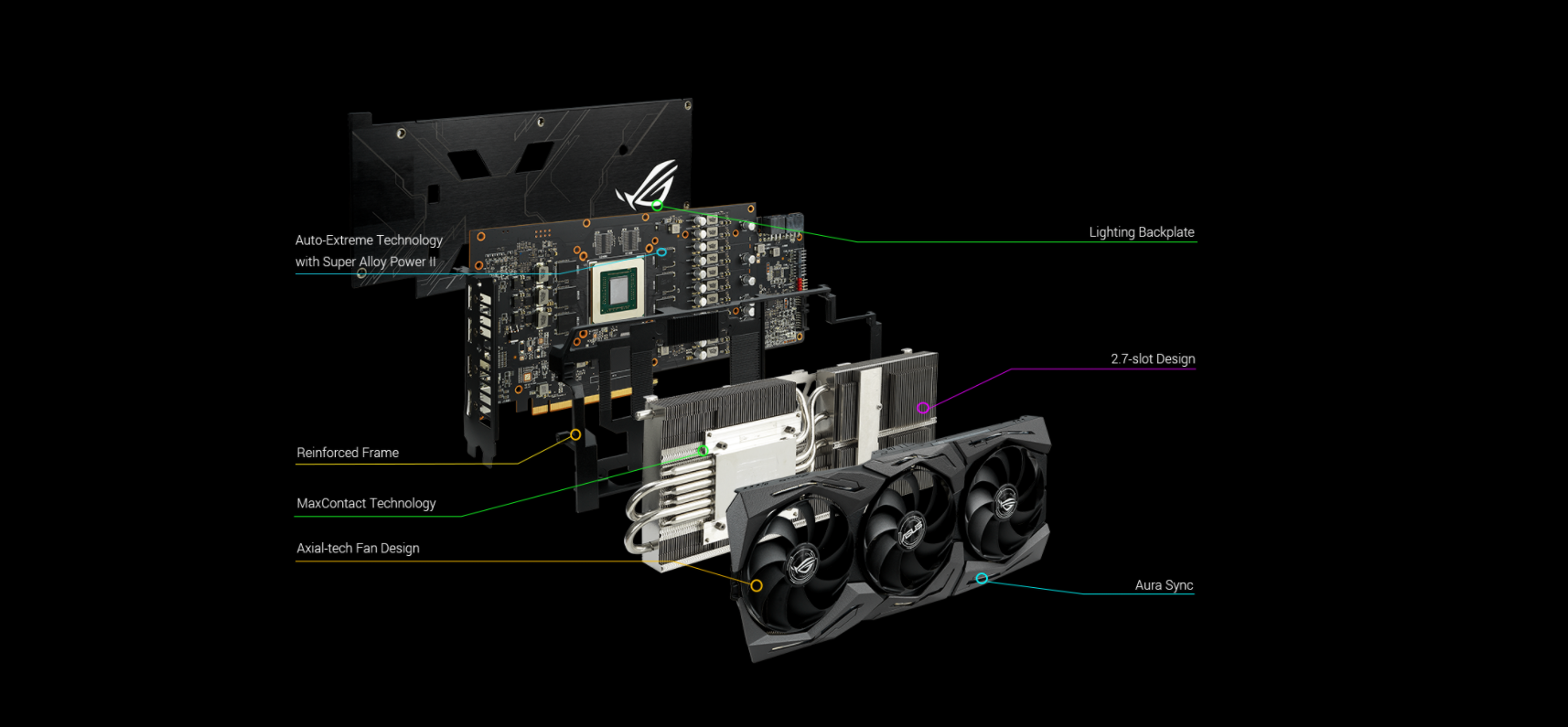

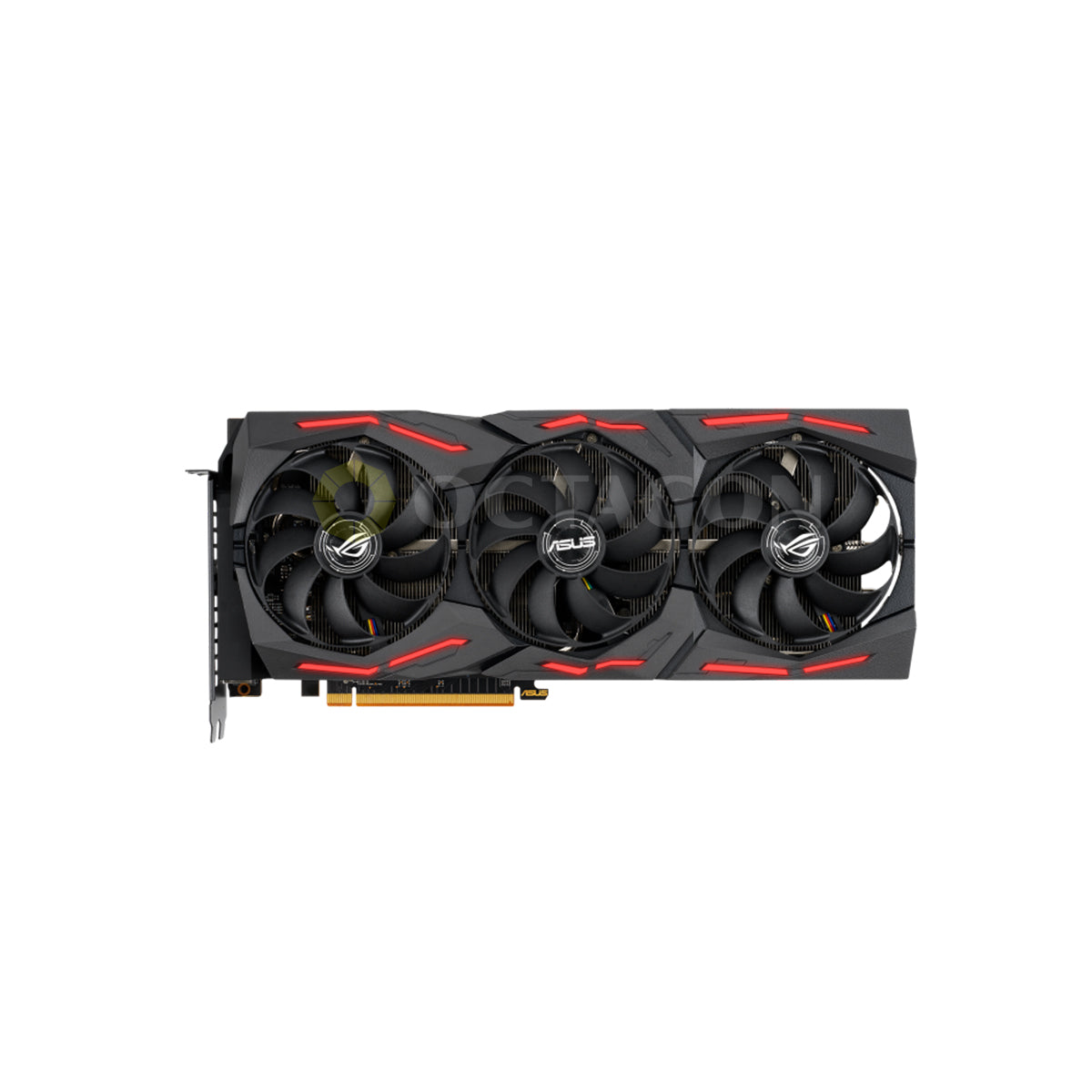

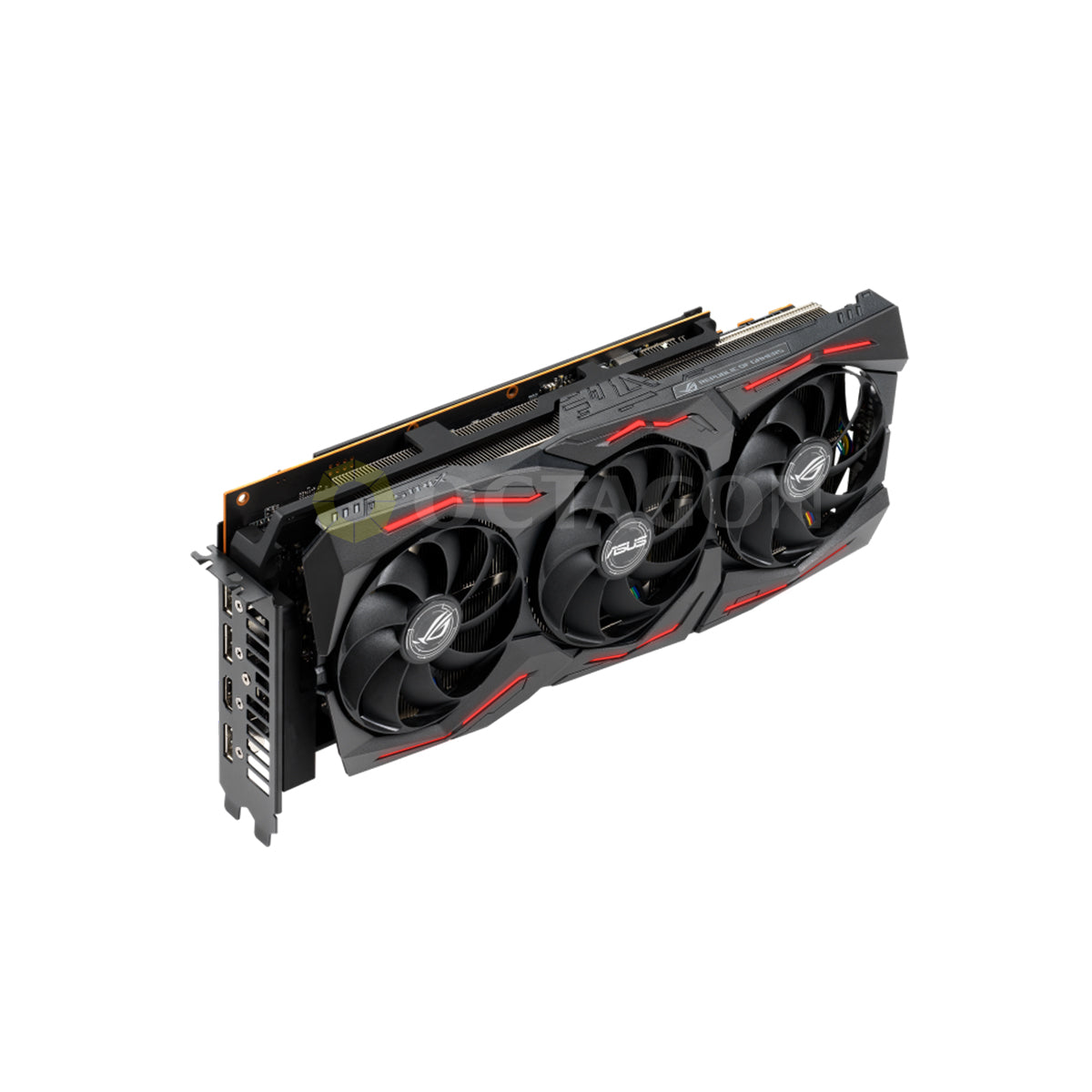

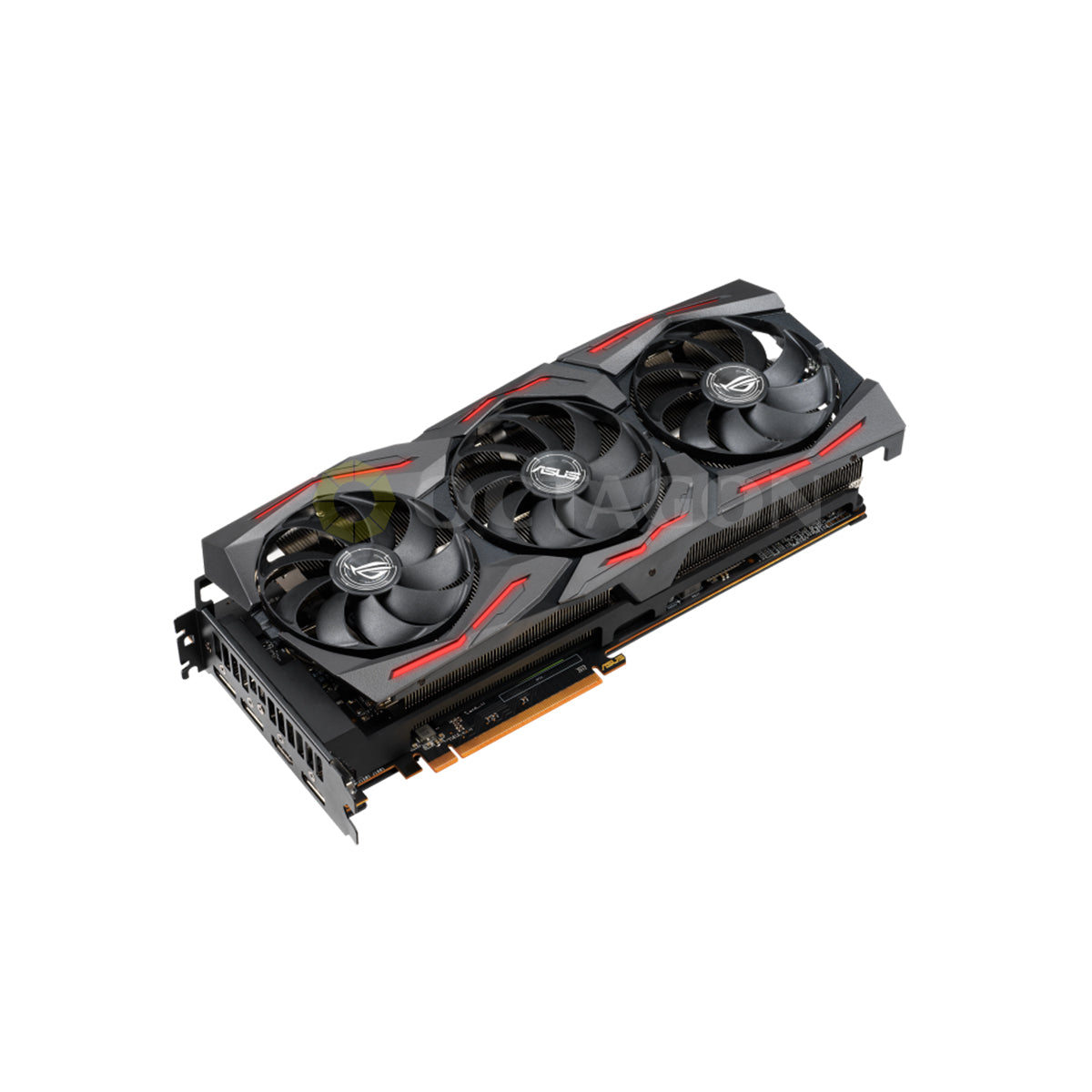

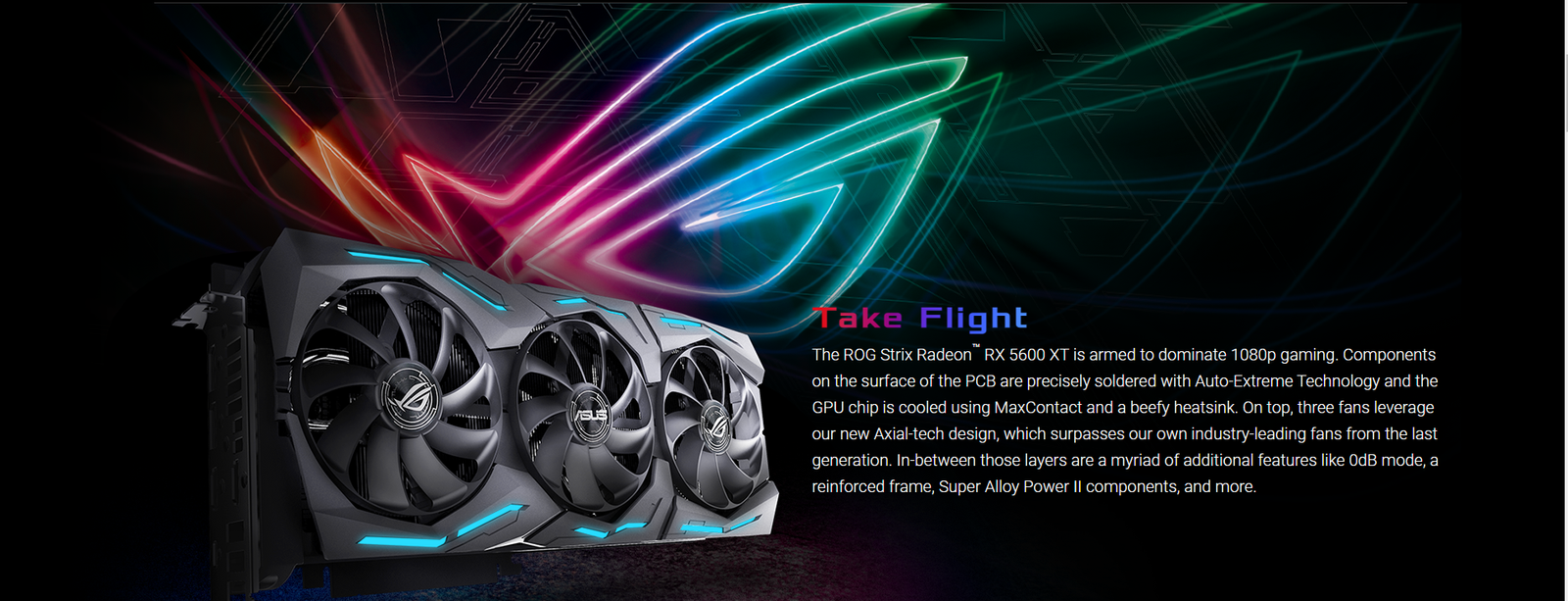

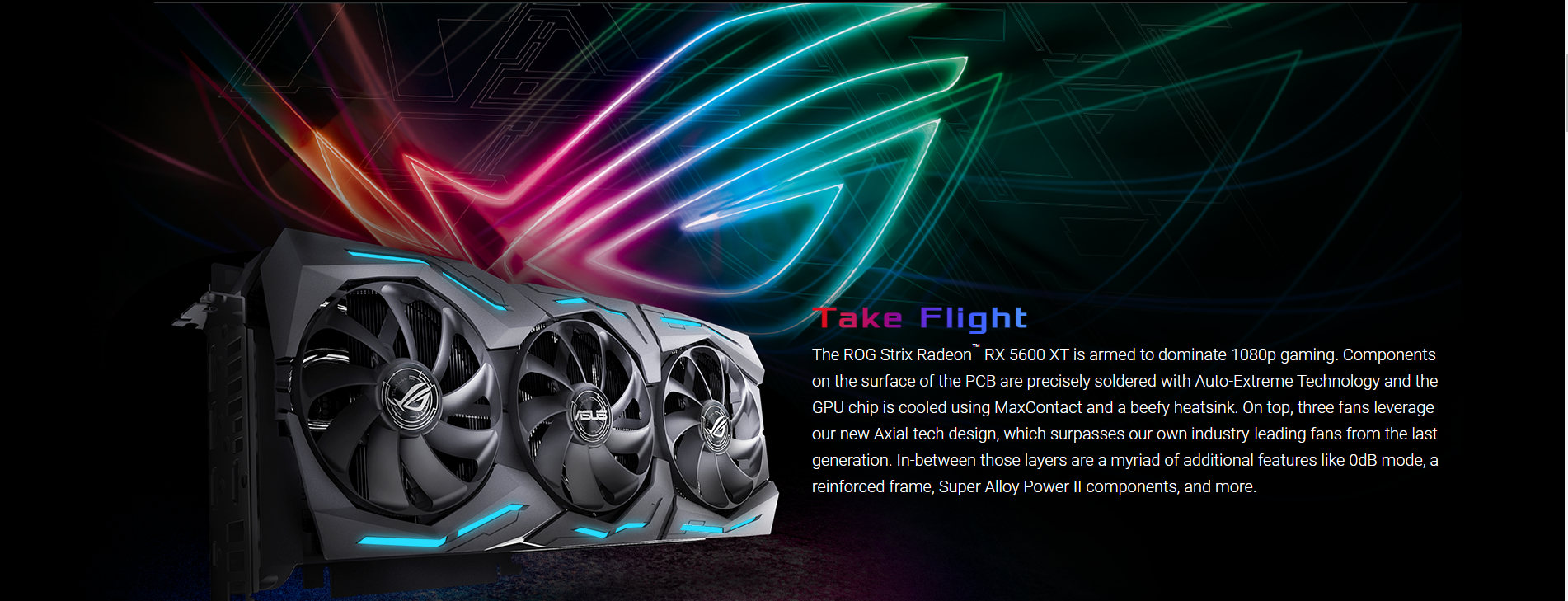

| Take Flight The ROG Strix Radeon™ RX 5600 XT is armed to dominate 1080p gaming. Components on the surface of the PCB are precisely soldered with Auto-Extreme Technology and the GPU chip is cooled using MaxContact and a beefy heatsink. On top, three fans leverage our new Axial-tech design, which surpasses our own industry-leading fans from the last generation. In-between those layers are a myriad of additional features like 0dB mode, a reinforced frame, Super Alloy Power II components, and more. |
 |
 |
| Axial-tech Fan Design Better, faster, stronger Newly designed for the latest generation of top-end ROG graphics cards, these fans feature a smaller hub that facilitates longer blades and a barrier ring to increase downward air pressure. |
 |
| Auto−Extreme Technology Precision automated manufacturing Auto-Extreme Technology is an automated manufacturing process that sets new standards in the industry by allowing all soldering to be completed in a single pass. This reduces thermal strain on components and avoids the use of harsh cleaning chemicals, resulting in less environmental impact, lower manufacturing power consumption, and a more reliable product overall. |
 |

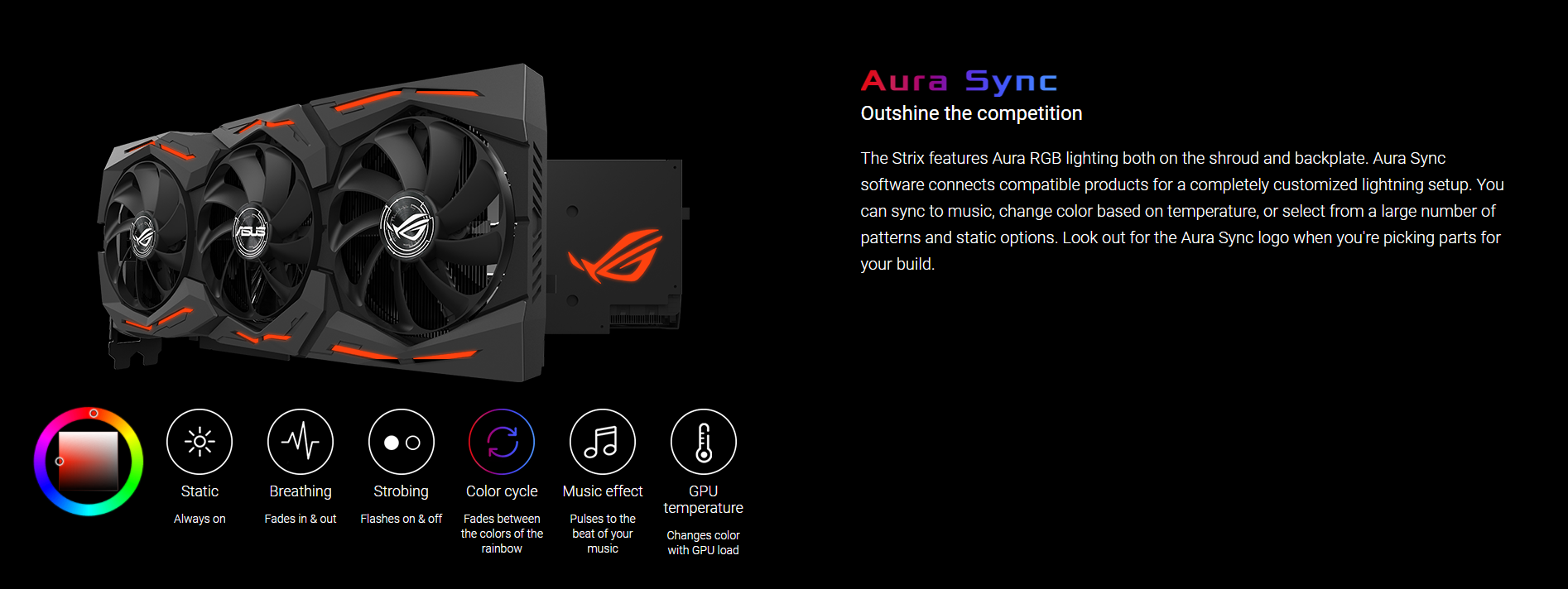

| Aura Sync Outshine the competition The Strix features Aura RGB lighting both on the shroud and backplate. Aura Sync software connects compatible products for a completely customized lightning setup. You can sync to music, change color based on temperature, or select from a large number of patterns and static options. Look out for the Aura Sync logo when you're picking parts for your build. |
Specification
| Model Name: | ASUS STRIX RX5600XT T6G |
| Brand: | ASUS ROG |
| Graphic Engine: | AMD Radeon RX 5600 XT |
| Bus Standard: | PCI Express 4.0 |
| OpenGL: | OpenGL®4.6 |
| Video Memory: | 6GB GDDR6 |
| Engine Clock: | OC mode: up to 1670 MHz(Game Clock**)/ ~1770 MHz(Boost Clock*) | Gaming mode: up to 1670 MHz(Game Clock**)/ ~1750 MHz(Boost Clock*) |
| Stream Processors: | 2304 |
| Memory Speed: | Up to 14 Gbps*** |
| Memory Interface: | 192-bit |
| Resolution: | Digital Max Resolution 7680 x 4320 |

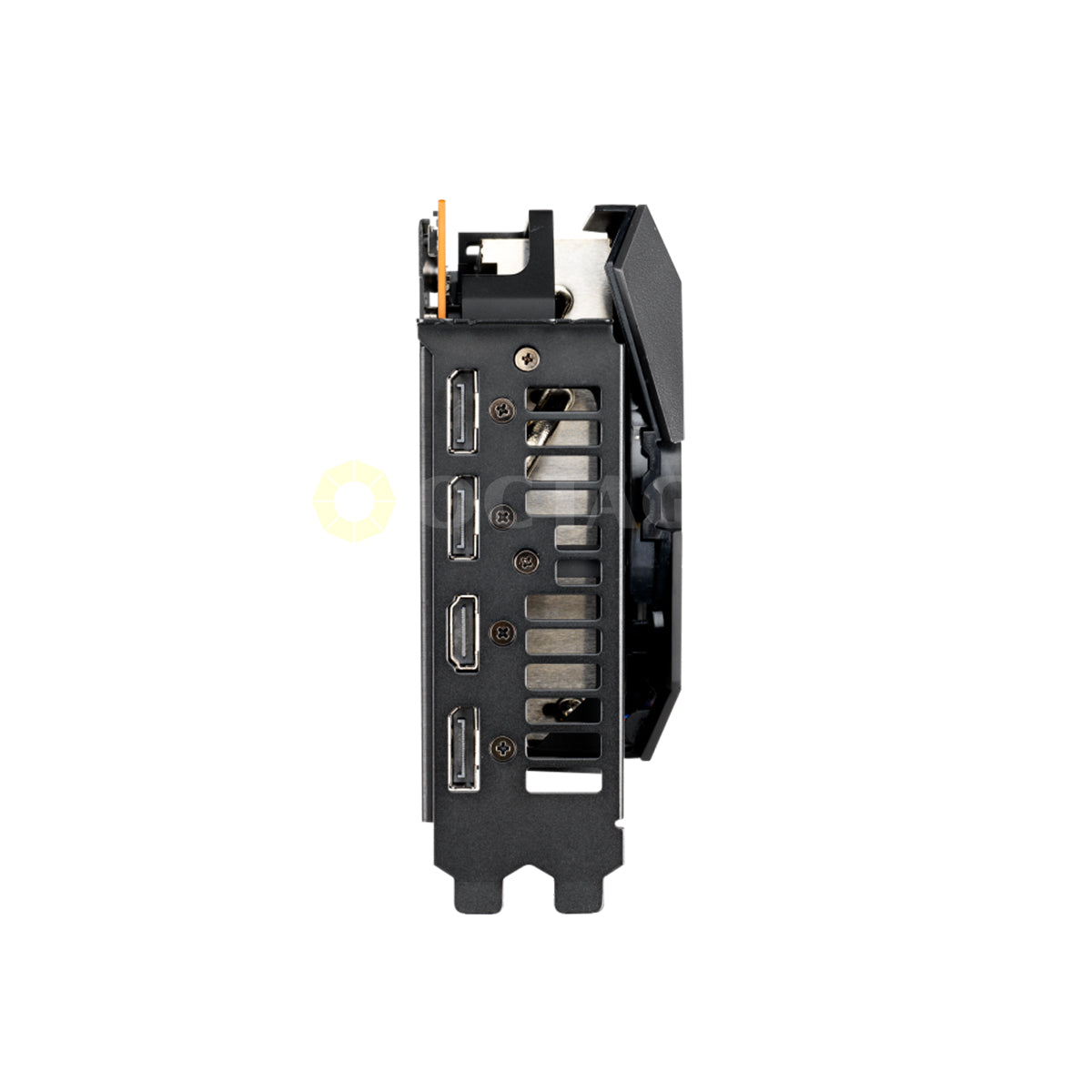

| Interface: | Yes x 1 (Native HDMI2.0b) | Yes x 3 (Native DisplatPort 1.4) | HDCP Support Yes (2.3) |
| Maximum Display Support: | 4 |
| Accessories: | 1 x Speedsetup manual | 1 x Thank you card | 1 x ROG Velcro Hook & Loop |
| Software: | ASUS GPU Tweak II & Drivers: please download all software from the support site. |
| Dimensions: | 11.96 " x 5.12 " x 2.13 " Inch | 30.37 x 13 x 5.39 Centimeter |
| Recommended PSU: | 450W |
| Power Connectors: | 1 x 6-pin, 1 x 8-pin |
| Slot: | 2.7 Slot |
| Note: | *Game Frequency is the expected GPU clock when running typical gaming applications. Actual individual game clock results may vary. **Boost frequency is the maximum expected GPU clock when lighter workloads are run under ideal thermal and electrical condition, set to typical TGP(Total Graphics Power). Actual individual boost clock results may vary. *** Please find the guideline for VRAM OC Tool :https://www.asus.com/support/FAQ/1042818 |
| ****Crossfire support with DX12 and Vulkan only. | All specifications are subject to change without notice. Please check with your supplier for exact offers. Products may not be available in all markets. If you do not use the latest and current specifications of ASUS products, you shall be liable for all loss and damage claimed by third party to ASUS based on false advertising or any other issues caused from using false specifications of ASUS products. |
