Tech Specification
 |
 |
 |
Specification
| Model Name: | ASUS RT-N12+ WIRELESS N300 ROUTER |
| Brand: | ASUS |
| Network Standard: | IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IPv4, IPv6 |
| Product Segment: | N300 complete networking : 300 Mbps |
| Coverage: | Medium homes |
| Data Rate: | 802.11n : up to 300 Mbps |
| Antenna: | Fixed antenna x 2 |
| Transmit/Receive: | MIMO technology| 2.4 GHz 2 x 2 |
| Operating Frequency: | 2.4 GHz |
| Encryption: | 64-bit WEP, 128-bit WEP, WPA2-PSK, WPA-PSK, WPA-Enterprise , WPA2-Enterprise , WPS support |
| Management: | UPnP, IGMP v1/v2/v3, DNS Proxy, NTP Client, DDNS, Port Trigger, Port Forwarding, DMZ |
| WAN Connection Type: | Internet connection type : Automatic IP, Static IP, PPPoE(MPPE supported), PPTP, L2TP |
| Utilities: | Device discovery, Firmware restoration | *Please download from the Support tab |

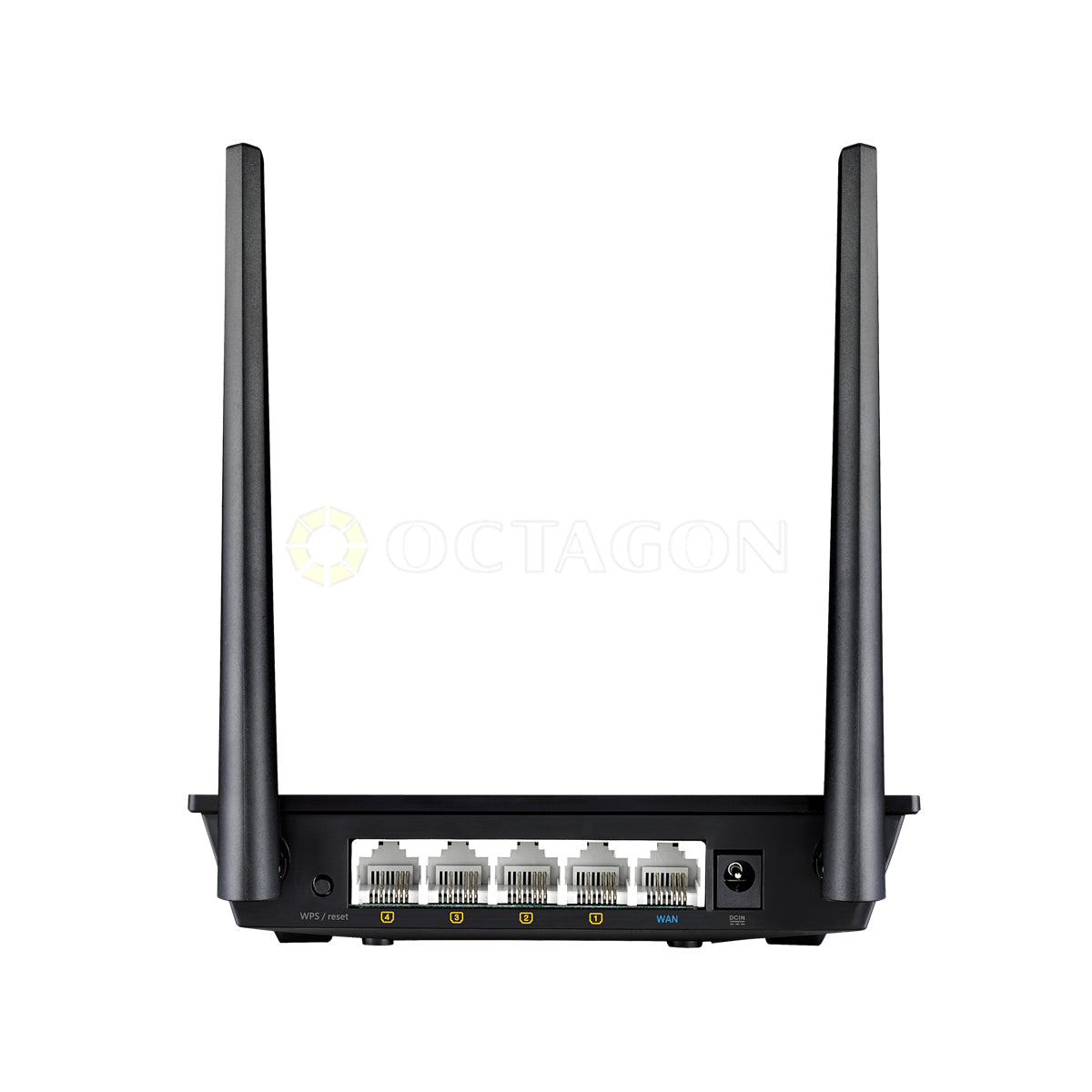

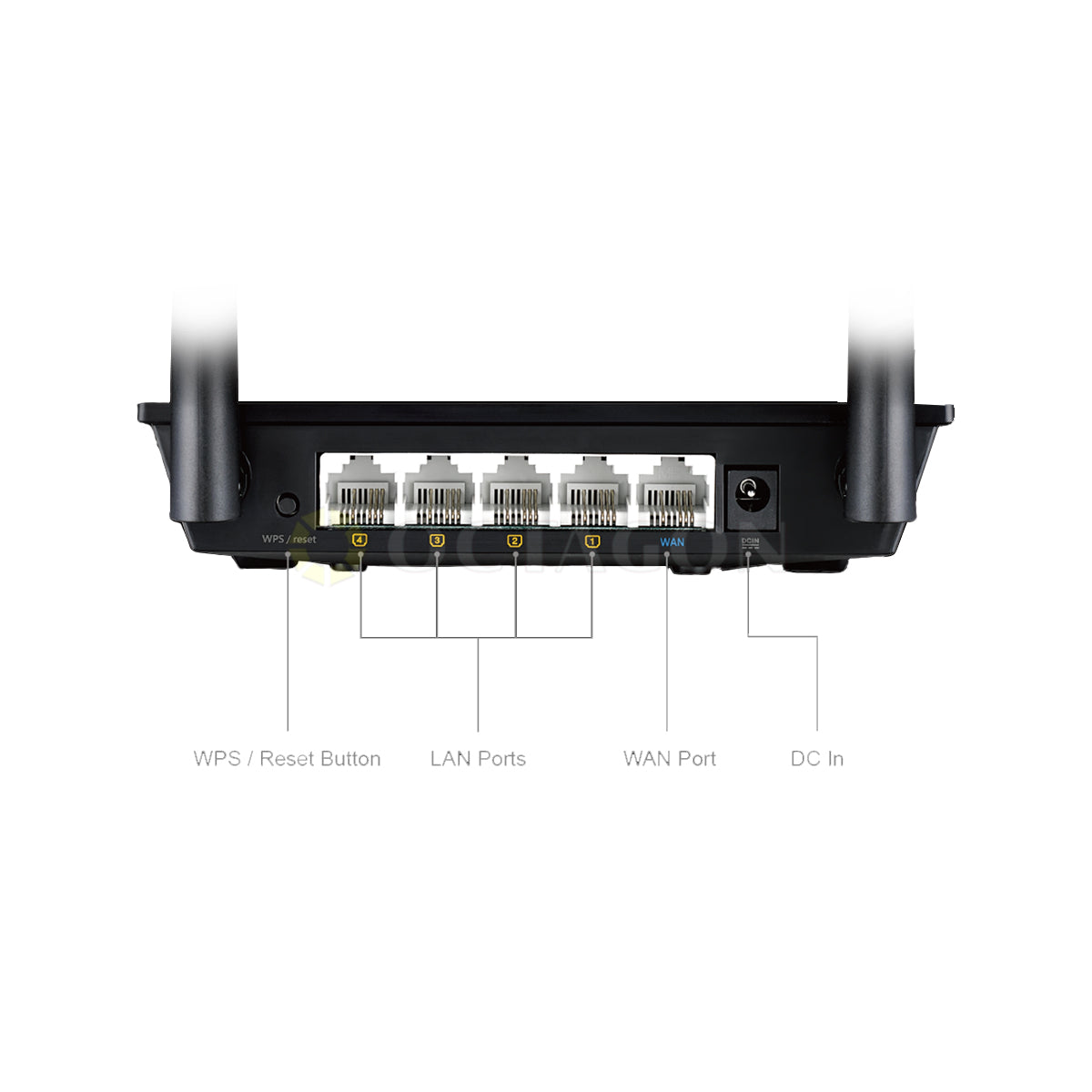

| Ports: | RJ45 for 10/100 BaseT for WAN x 1, RJ45 for 10/100 BaseT for LAN x 4 |
| Features: | SmartQoS | - WMM | - User definable rules for IP/MAC/Port | - Upload and download bandwidth management | - ACK/SYN/FIN/RST/ICMP with highest priority |
| Parental Control | Guest Network : | 2.4 GHz x 3 | VPN server : IPSec Pass-Through, PPTP Pass-Through, L2TP Pass-Through, PPTP Server | IPTV support |
| Button: | WPS Button, Power Button |
| LED Indicator: | Power x 1 | Wi-Fi x 1 | WAN x 1 | LAN x 1 |
| Power Supply: | AC Input : 110V~240V(50~60Hz) | DC Output : 12 V with max. 0.5 A current |
| OS Support: | Windows® 10 | Windows® 8.1 | Windows® 8 | Windows® 7 | Mac OS X | Windows® XP | Linux |
| Dimensions: | 146 x 111 x 24 ~ mm (WxDxH) (Without Bezel) |
| Operation mode: | Wireless router mode | Range extender mode | Access point mode |
