Tech Specification
APC BR1600MI 1600VA/ 960W/ 230V/8 OUTLETS/ UNIVERSAL SOCKET/ AVR/ LCD INTERFACE

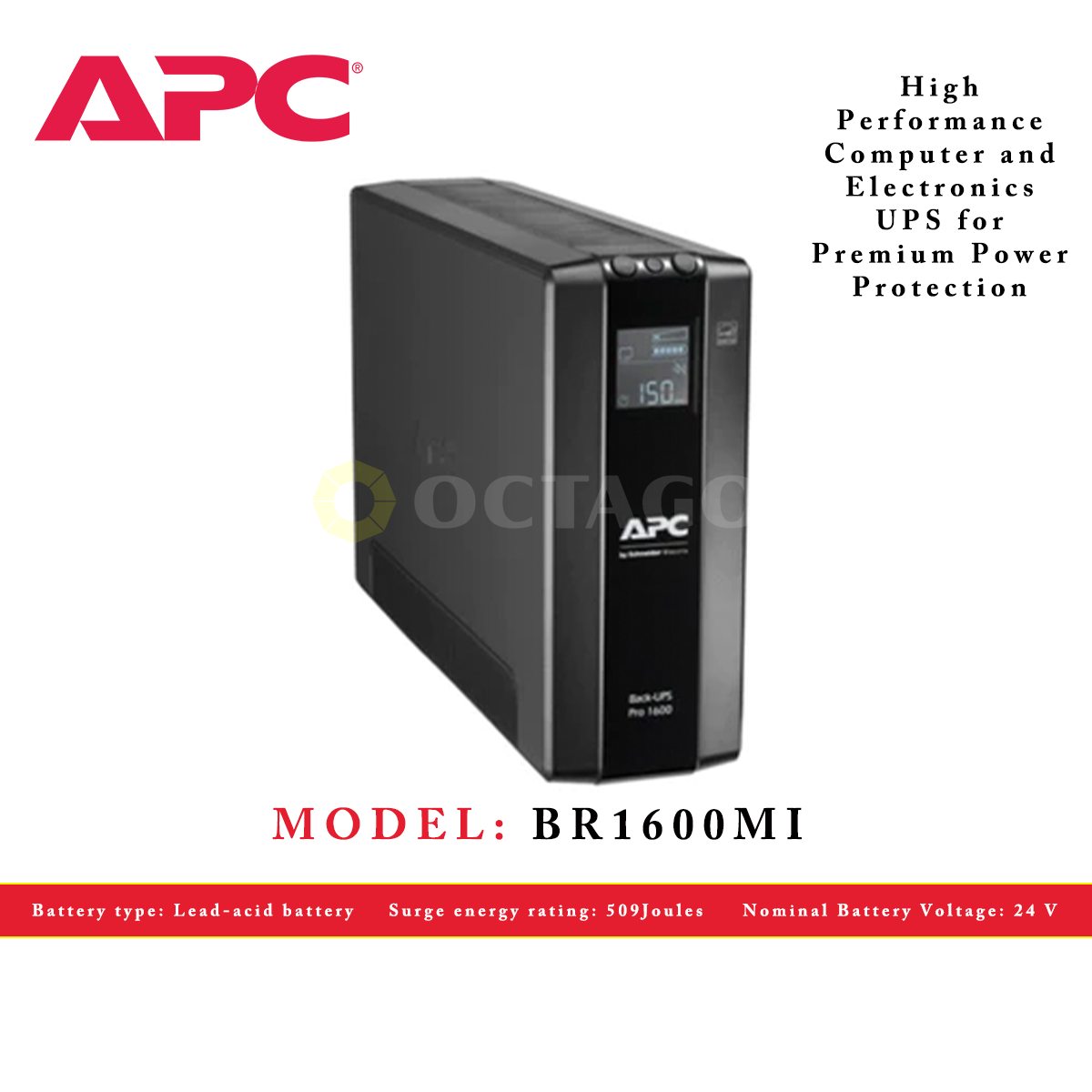

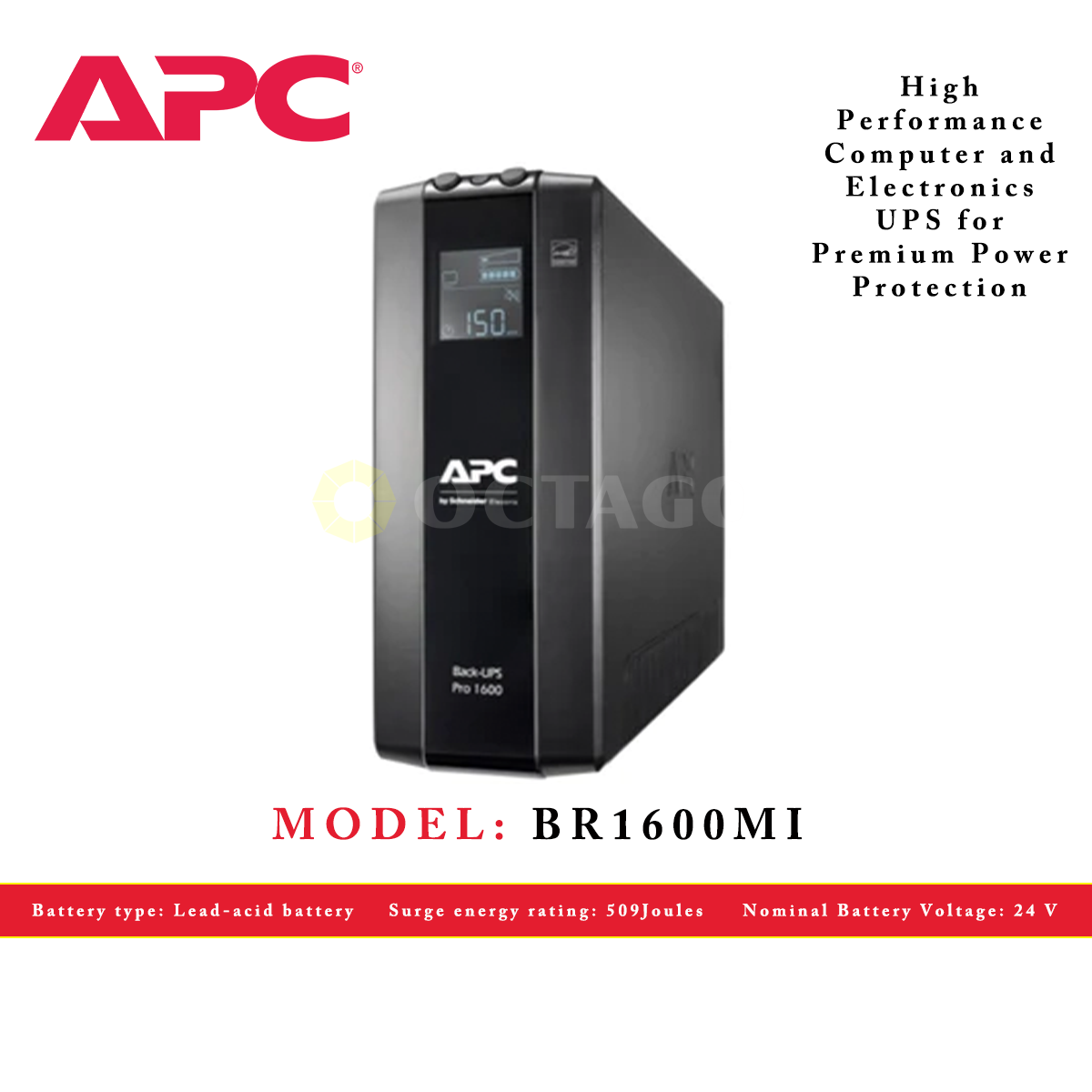

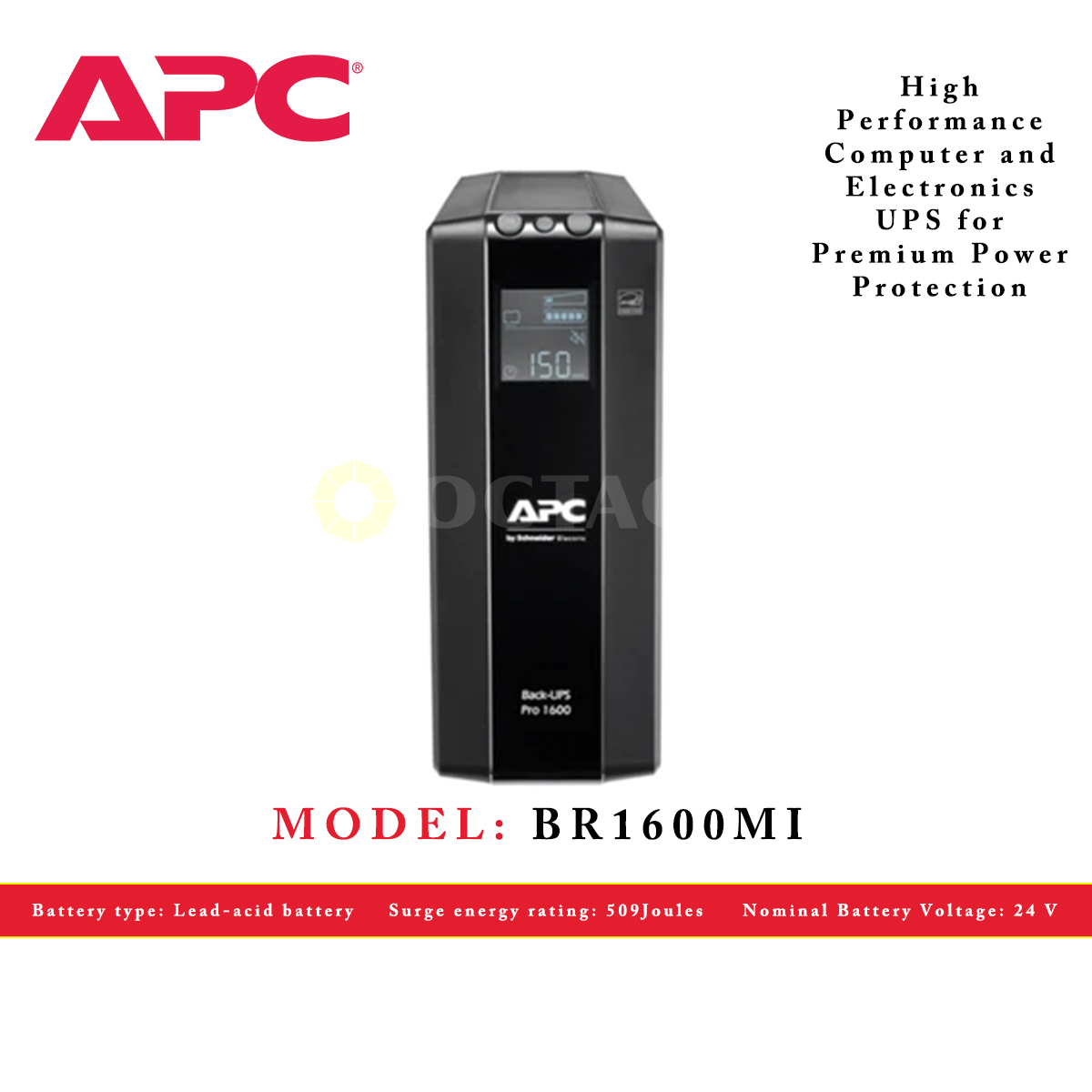

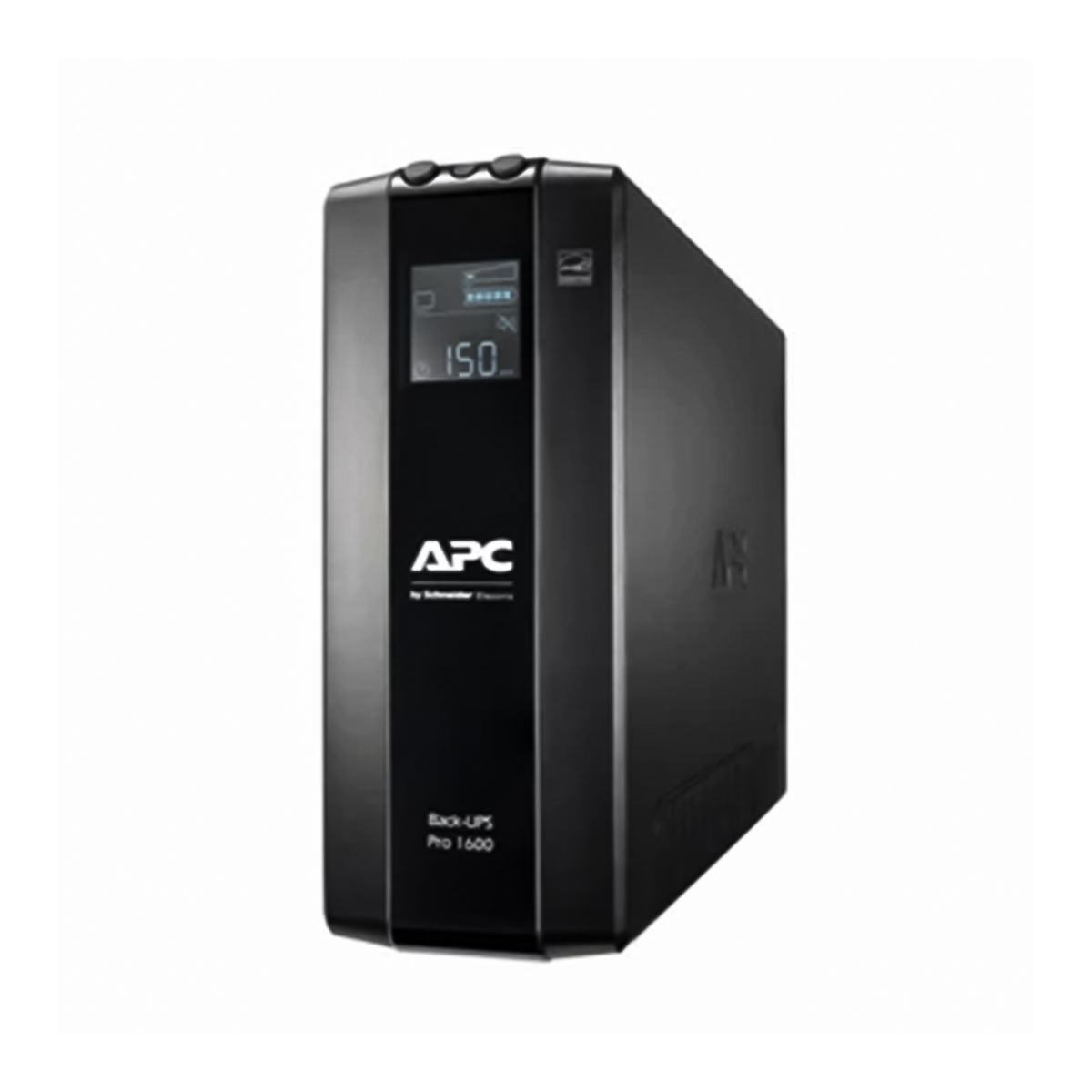

APC Back-UPS Pro 1600VA, 8 Outlets, AVR, LCD Interface
High Performance Computer and Electronics UPS for Premium Power Protection
-
Audible alarms
Provides notification of changing utility power and UPS power conditions
-
Automatic self-test
Periodic battery self-test ensures early detection of a battery that needs to be replaced.
-
Battery failure notification
Provides early-warning fault analysis on batteries enabling timely preventive maintenance
-
Battery replacement without tools
Enables fast battery replacement, lowering Mean Time to Repair (MTTR).
-
Battery-protected and surge-only outlets
Reserves power capacity and run time for connected equipment that require UPS battery back-up while providing surge only protection for less critical equipment
-
Boost and Trim Automatic Voltage Regulation (AVR)
Gives higher application availability by correcting low and high voltage conditions without using the battery (not available on all models).
-
Cold-start capable
Provides temporary battery power when the utility power is out.
-
Dataline surge protection
Provides protection of connected equipment from power surges on the data lines.
-
Disconnected battery notification
Warns when a battery is not available to provide backup power.
-
Hot-swappable batteries
Ensures clean, uninterrupted power to protected equipment while batteries are being replaced
-
LCD graphics display
Text and mimic diagrams that display modes of operation, system parameters and alarms.
-
Safety-agency approved
The UPS is UL1778 Listed
-
USB connectivity
Provides management of the UPS via a USB port (not available on all models).
-
User-replaceable batteries
Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR)
Back-UPS Pro Features & Benefits
Availability:
*Green mode
Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.
*Intelligent battery management
Maximizes battery performance, life, and reliability through intelligent, precision charging.
*Customizable voltage sensitivity
Toggle between pre-determined voltage-transfer points depending on your power quality (high, medium or low sensitivity), maximizing useful battery life and protecting sensitive electronics.
*Customizable voltage-transfer points
Adjust the voltage points (widen or tighten the range) where your UPS transfers to battery to maximize useful battery life and protect sensitive electronics.
*Cold-start capable
Provides temporary battery power when the utility power is out.
*Battery failure notification
Provides early-warning fault analysis on batteries enabling timely preventive maintenance
*Boost and Trim Automatic Voltage Regulation (AVR)
Gives higher application availability by correcting low and high voltage conditions without using the battery (not available on all models).
*Automatic self-test
Periodic battery self-test ensures early detection of a battery that needs to be replaced.
*Transformer-block spaced outlets
Protect equipment with input transformer blocks without blocking access to other receptacles.
Manageability:
*USB connection
Use your PC to access additional power protection and management features for your UPS via a USB Port.
*Disconnected battery notification
Warns when a battery is not available to provide backup power.
*LCD Status Display
Provides key UPS status at a glance. Multiple status indicators with load and battery bar graphs.
*Audible alarms
Provides notification of changing utility power and UPS power conditions
Marketing features:
*Battery-protected and surge-only outlets
Reserves power capacity and run time for connected equipment that require UPS battery back-up while providing surge only protection for less critical equipment
*Boost Automatic Voltage Regulation (AVR)
Preserves battery life and maximizes runtime by correcting low voltages without discharging the battery.
Protection:
*Surge only outlets
Protect secondary electronics from surges and spikes without reducing battery power used to run primary electronics during an outage.
*Battery and surge protected outlets
Back up and protect your hardware and data during power outages, surges and spikes.
*Dataline surge protection
Provides protection of connected equipment from power surges on the data lines.
Safety:
Safety-agency approved
Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.
Serviceability:
Resettable circuit breaker
Easy recovery from overloads; no need to replace a fuse. (Not available on Wall Tap SKUs)
Simple battery replacement
Increases UPS availability by allowing quick, easy battery replacement.
Specifications:
| Model Name | APC BR1600MI |
| Brand Name | APC |
| Descriptions | APC BR1600MI 1600VA/ 960W/ 230V/ 8 OUTLETS/ UNIVERSAL SOCKET/ AVR/ LCD INTERFACE |
| Color | Black |
| POWER CAPACITY | 1600VA | 960 Watts |
| IN/OUTPUT VOLTAGE | 230V |
| TOPOLOGY | Line Interactive |

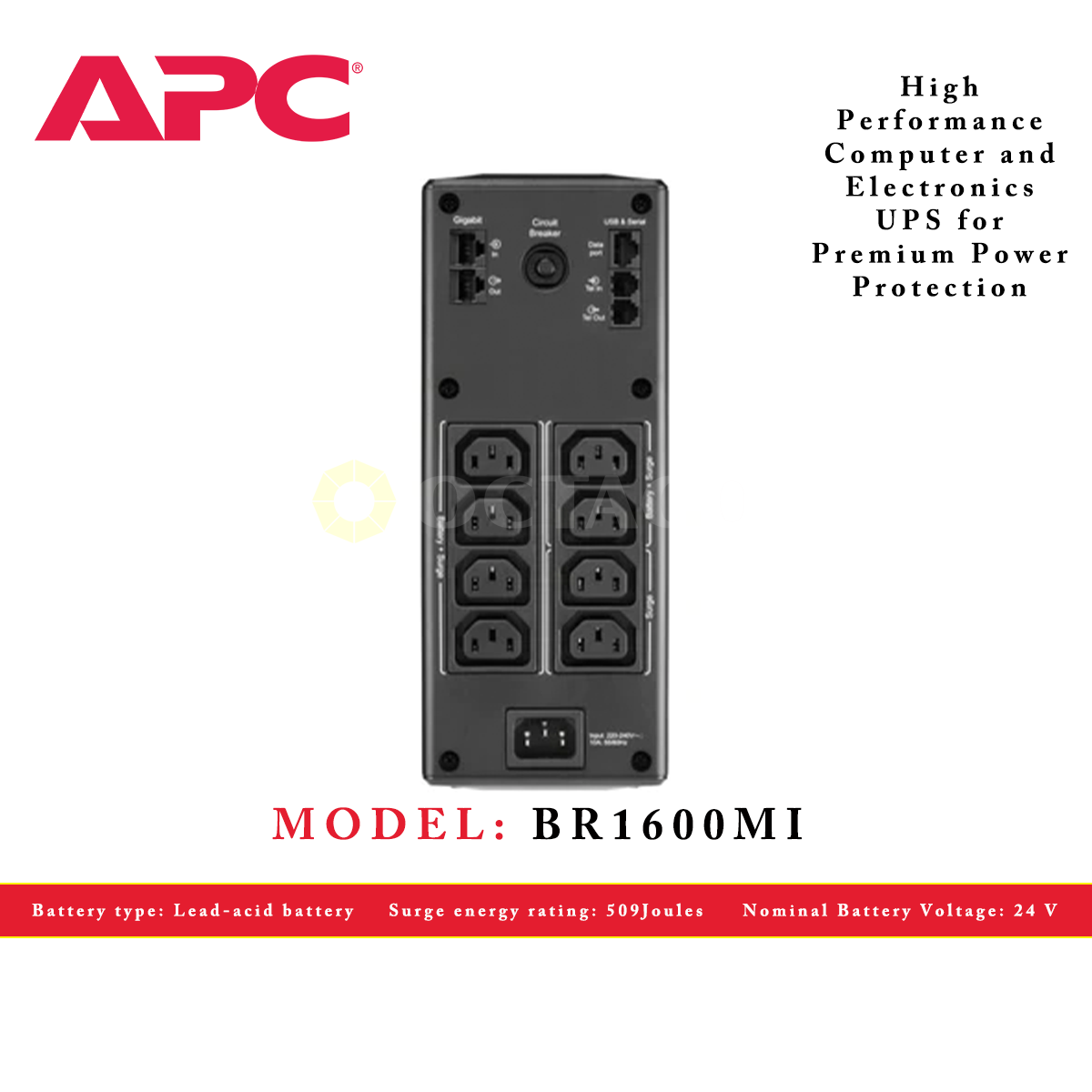

| OUTPUT CONNECTION | (2) IEC 320 C13 (Surge Protector) (6) IEC 320 C13 (Battery Back Up) |
| RUNTIME | 30 MINUTES (200 Watts Load) |
| RESETABLE CIRCUIT BREAKER | YES |
| AVR | WITH AVR |
| RECHARGE TIME | 16 HOURS |
| BATTERY TYPE | Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof |
| CONTROL PANEL | Multi-function LCD status and control console |
| SOFTWARE | PowerChute Personal Edition v3.1 Windows 7, 8,10 |
